Scaling Software Security Analysis to Satellites
Automated Fuzz Testing and Its Unique Challenges
Johannes Willbold*, Moritz Schloegel^, Florian Göhler*,
Tobias Scharnowski^, Nils Bars^, Simon Wörner^, Nico Schiller^, Thorsten Holz^
*Ruhr University Bochum, Chair for Systems Security
^CISPA Helmholtz Center for Information Security
v1.0
Scenario

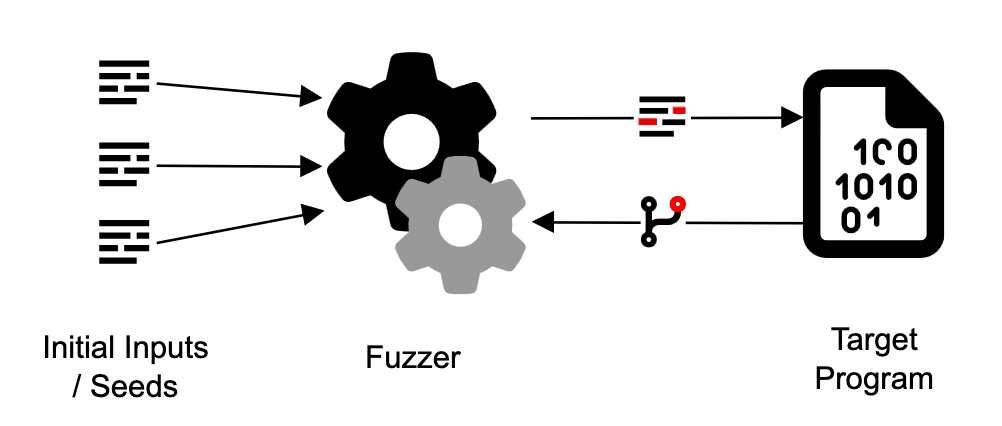

Fuzzing
Challenges
- Complex Satellite Boot Process
- Only Crashing Inputs
- Computing Hardware with Limited-Performance
- Highly Specialized and Individual Setups
- Performance of Existing Digital Twins
Approaches
=> No Hardware

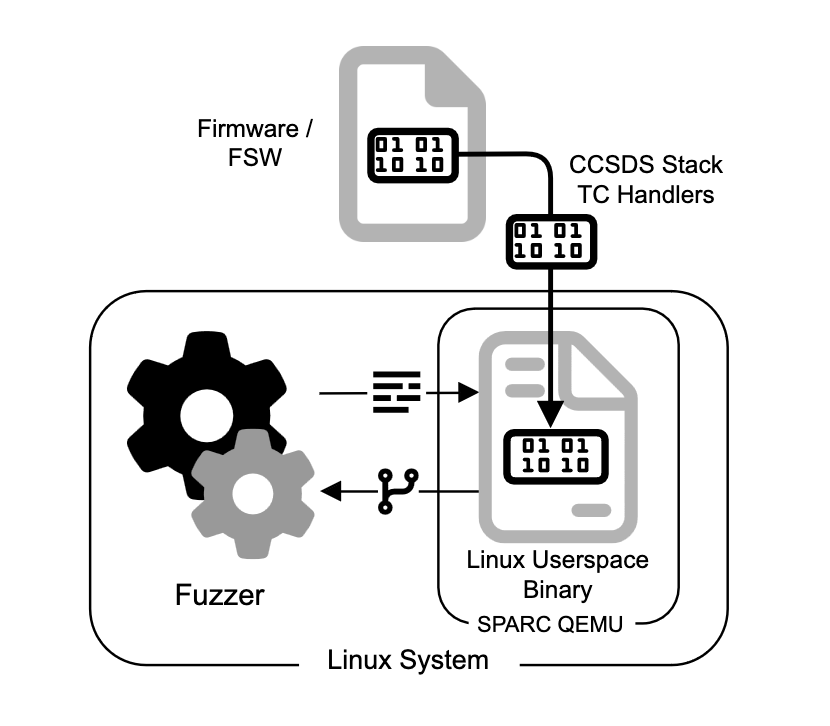

Subsystem Extraction
Subsystem Extraction
Issues:
- Many global objects
- Require manual initialitation and code extraction
- Linux incompatible low-level code
- Extensive manual changes required
- No interactions between components

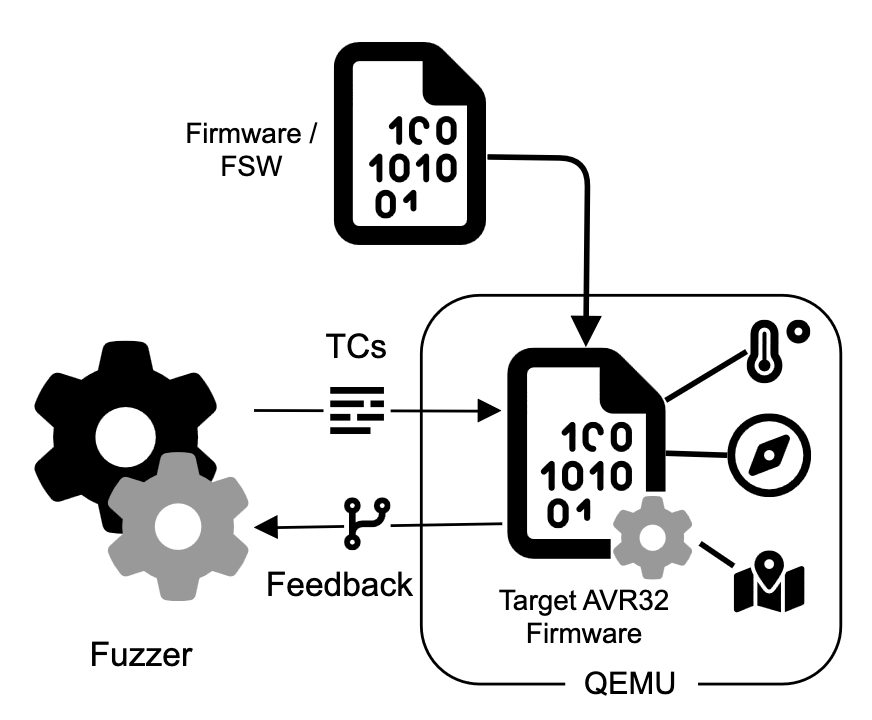

Persistent Mode Fuzzing
Persistent Mode Fuzzing
Observations
- Skipped bootprocess due to persistent mode
- Potentially non-reproducible bugs due to persistent mode
- Missing peripherals
- Peripherals with statis responses

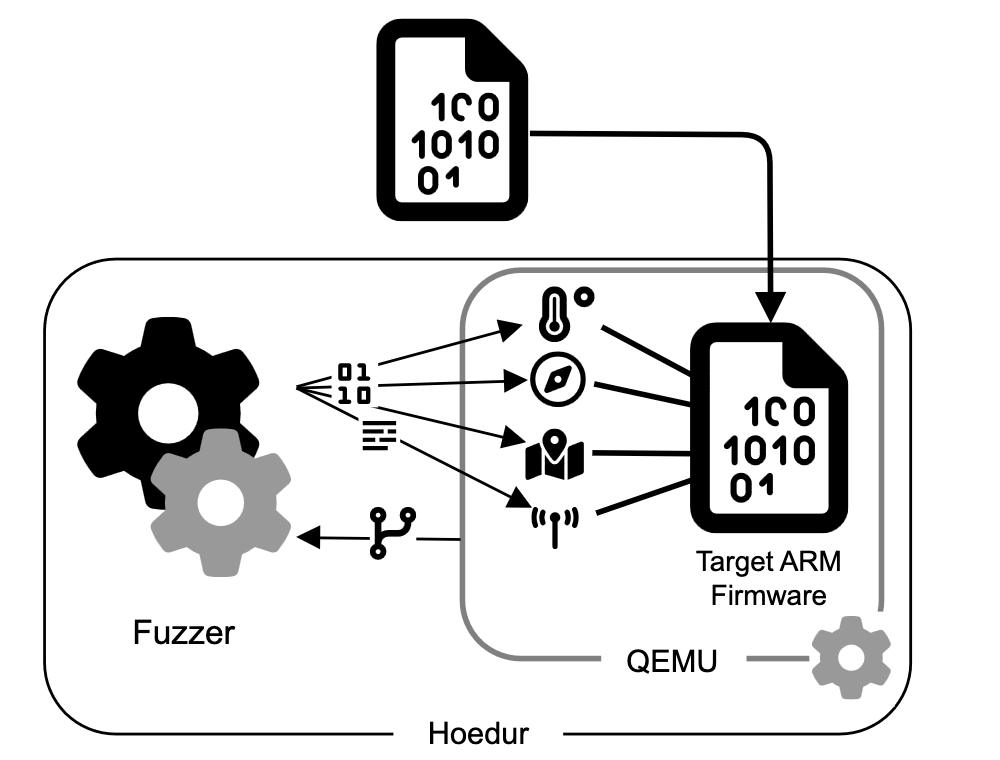

Firmware Rehosting
Firmware Rehosting
Observations
- Peripheral modelling replaces specific peripheral simulation
- Snapshoting replaces persistent mode
- But does not have accumulated state
- Read-only regions allow to detect "Dangerous TCs"
Results
Usual Metric: Code Coverage
Results
Usual Metric: Code Coverage
Here: TC Coverage
| Metric | Subsys. Extraction | Persistent Mode Fuzzing | Firmware Rehosting |
|---|---|---|---|
| TC Handlers Reached | - | 59/59 (100%) | 128/128 (100%) |
| Code Coverage in TC Handlers | - | 1300/1704 (76%) | 763/981 (78%) |
Roadblocks
- Hashes & CRC-Sums
- Large Value Comparisons
- Grammer Formats
- ...
Johannes Willbold - johannes.willbold@rub.de
/jwillbold
Q&A
- Fuzzing introudction
- Five satellite fuzzing challenges
- Three fuzzing setups with no hardware
- Evaluation
