Satellite Cybersecurity Reconnaissance

Strategies and their Real-world Evaluation

Johannes Willbold*, Franklyn Sciberras‡,
Martin Strohmeier^, Vincent Lenders^

*Ruhr University Bochum, Chair for Systems Security

‡ETH Zürich, Department of Computer Science,

^armasuisse Science + Technology, Cyber-Defence Campus

v1.0

Security by Obscurity

  • Unsecured satellites
  • Satellites rely on Security-by-Obscurity
  • Where is the obscurity-breaking information coming from?

 Reconnaissance

  • How can attackers break obscurity?
  • => How feasible is reconnaissance for satellites?
  • What information is public?

 Attacker Models

External Attacker

Privilieged Attacker

Privileged Attacker

Privilieged Attacker

No Technical Insights

Received Access Credentials

→ On-Board Reconnaissance

Approach

18 Reconnaissance Goals

12 Reconnaissance Strategies

2 Strategy Evaluations

Reconnaissance Goals

Spacecraft Tracking & Operations

Radio Communication Parameters

Network Protocol Stacks

TMTC Protocols

=> Common goals not all

Spacecraft Tracking & Operations

  • Tracking (TLE)
  • GS Pointing
  • Satellite Attitude
  • Operational Time Frame

Spacecraft Tracking & Operations

  • Tracking (TLE)
  • GS Pointing
  • Satellite Attitude
  • Operational Time Frame

Spacecraft Tracking & Operations

  • Tracking (TLE)
  • GS Pointing
  • Satellite Attitude
  • Operational Time Frame

Radio Communication Parameters

  • Signal Strength
  • Frequency
  • Error Correction

Radio Communication Parameters

  • Signal Strength
  • Frequency
  • Error Correction

Radio Communication Parameters

  • Signal Strength
  • Frequency
  • Error Correction

Network Protocol Stacks

  • Point-to-Point Protocols
  • Vendor-specific Implementation Details
  • Cryptographic Communications Protection
  • Network Protocols and Routing

TMTC Protocols

  • Telecommand Set
  • TMTC Formats

Strategies

Open Databases

Public Regulator Filings

Common Options

COTS Analysis

Passive Traffic Analysis

Active Enumeration

Open Databases

  • Launch: YYYY-XXX
  • INTELDES/COSPAR ID: YYYY-XXXA/B/...
  • JWST: 2021-130A
  • US Space Surveillance Network (SSN)
  • Tracked Obj -> SATCAT/NORAD ID
  • => TLE
  • space-track website: COSPAR ID <=> NORAD ID

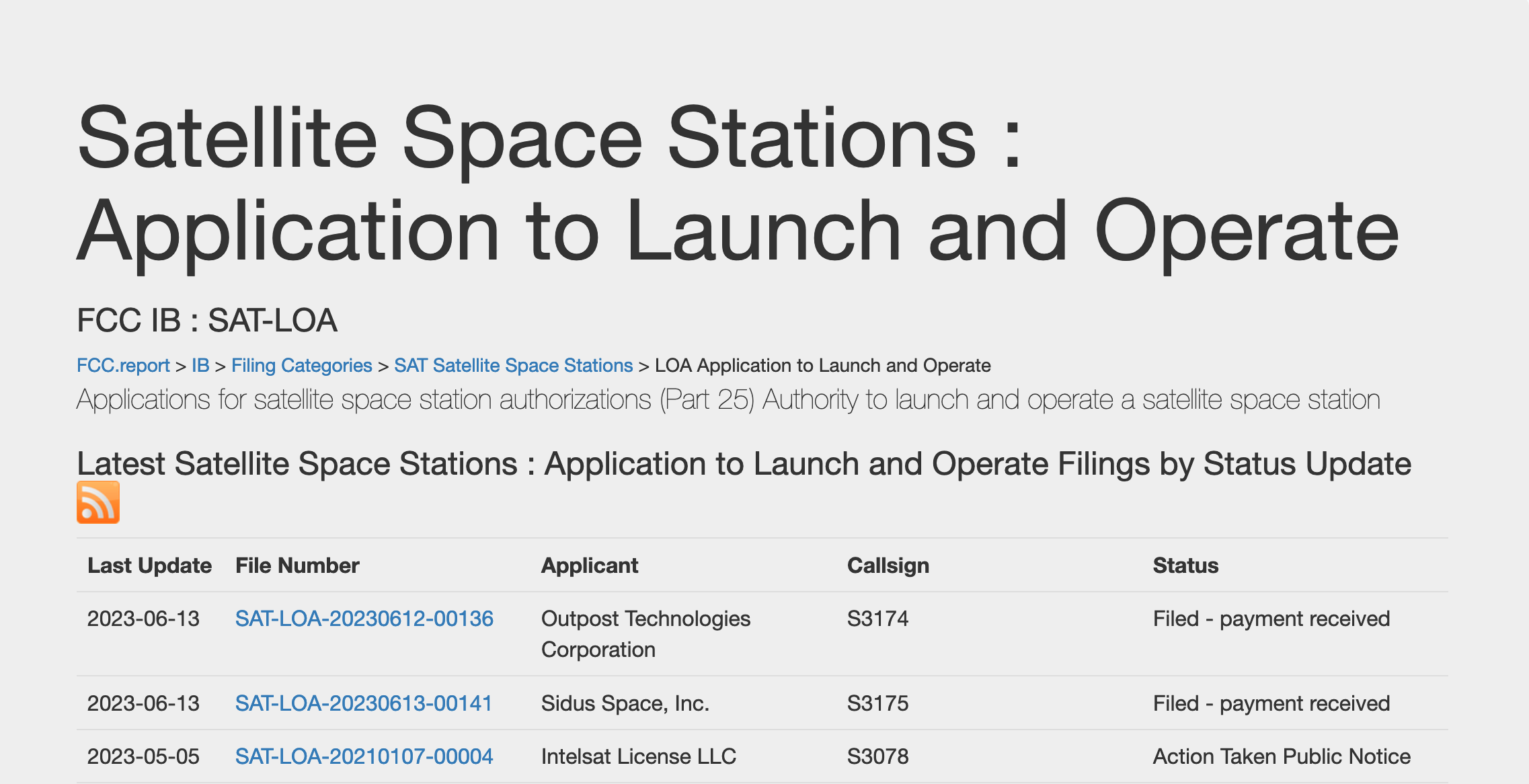

Public Regulator Filings

Satellite Space Stations: Application to Launch and Operate

  • TT&C Frequency
  • Payload Frequency
  • GS Location
  • Other

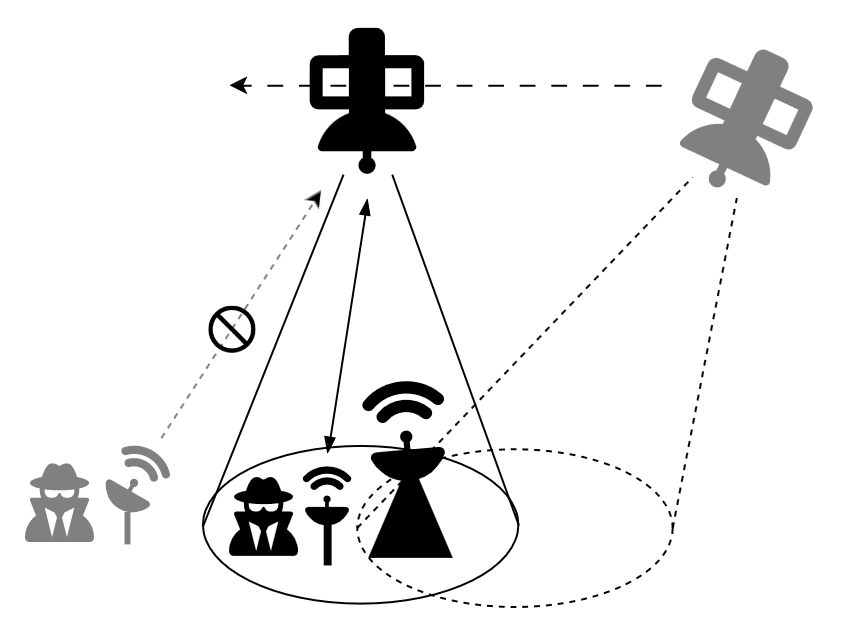

Common Options

GS Location Inference

COTS Analysis

Vendor Documentation

Software Reverse Engineering

Passive Traffic Analysis

?

!

Active enumeration

TC ID 0x1

TC ID 0x2

TC ID 0x1337

?

Goal-to-Strategy

Evaluation

Public Regulator Filings -> FCC Filings

Active Enumeration

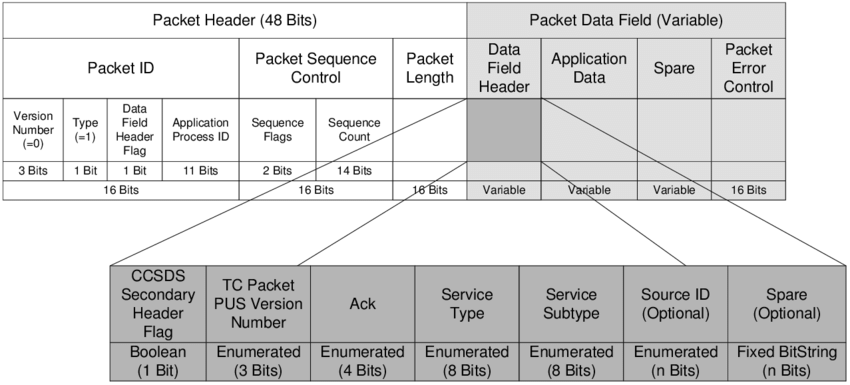

-> ECSS PUS Analysis

FCC Filings

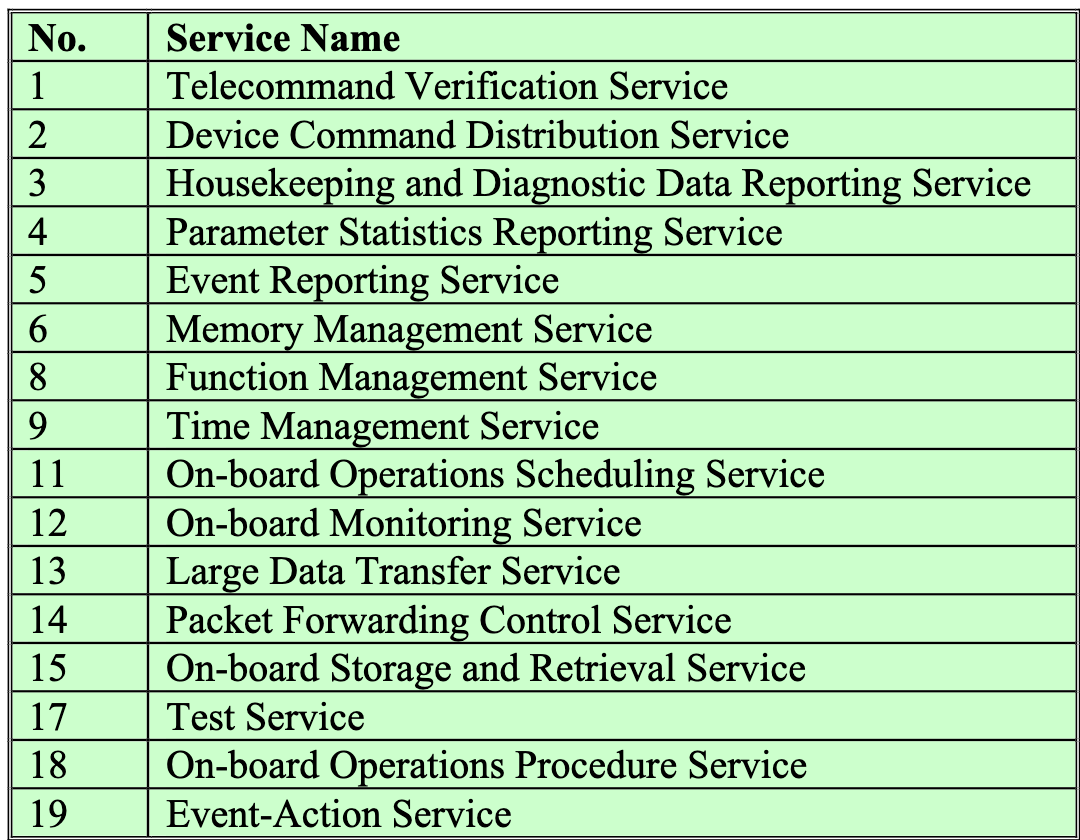

 TT&C Analysis

 TT&C Analysis

- 255 potential services
- Each Services: 255 potential subservices
=> 65.035 potential Subservices

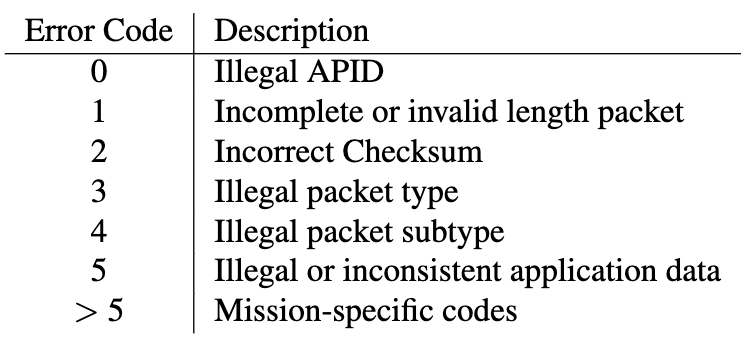

 TT&C Analysis

  • Service 1, SubService 1 => Error 3
    • Service doesn't exist
  • Service 2, SubService 1 -> Error 5
    • Service exists, SubService exists, Wrong data
  • Service 2, SubService 2 -> Error 4
    • Service exists SubService does not exist



 TT&C Analysis

  • Command ID
  • Subcommand ID
  • Error Message



=> Simple Iteration

Johannes Willbold - johannes.willbold@rub.de

/jwillbold

@jwillbold

Q&A

18 Reconnaissance Goals

12 Reconnaissance Strategies

2 Strategy Evaluations
