Space Invaders

An Experimental Security Analysis of LEO Satellites

Johannes Willbold

@jwillbold

/jwillbold

jwillbold

Slides

Get it while its hot!

Mission Briefing

Objective

Target

Intel

Finale

Finale

Hostile Takeover & Lockout

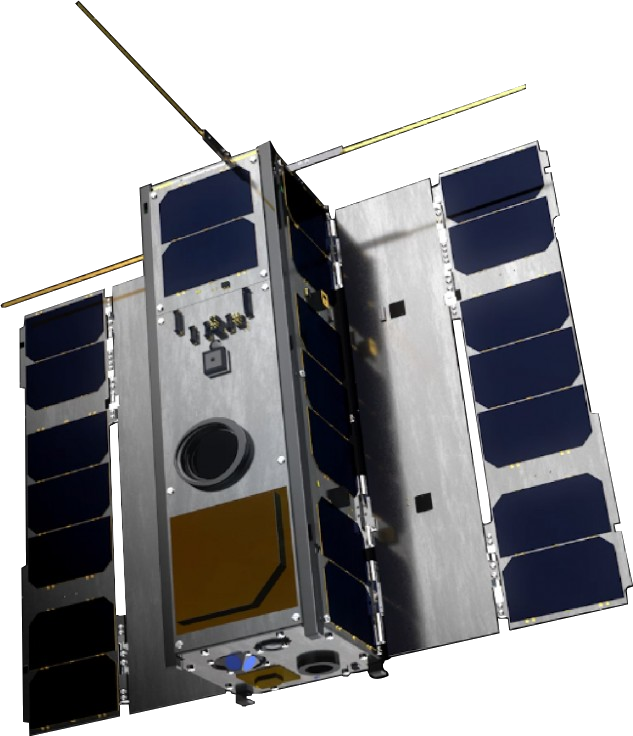

ESA's OPS-Sat

ESA's OPS-Sat

ESA's OPS-Sat

ESA's OPS-Sat

$whoami

  • Satellite & Space Systems Security
  • PhD Student
    • Ruhr University Bochum, DE
  • Co-Founder of SpaceSec
  • Visiting Researcher
    • Cyber-Defence Campus, CH
  • 2022 CySat Speaker

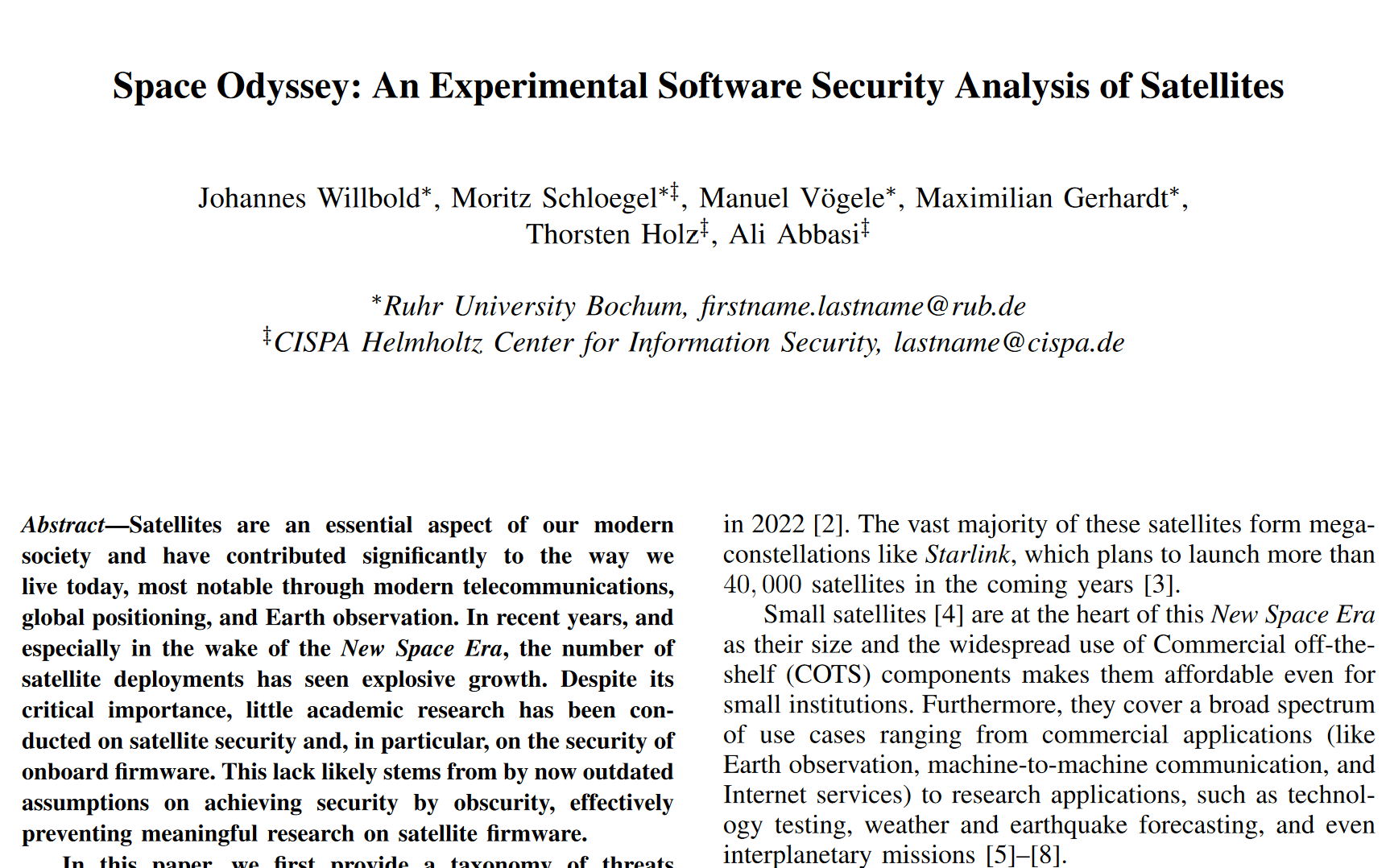

Space Odyssey

44th IEEE Symposium on Security and Privacy (S&P)

Our Journey ...

Firmware Attacks

Security Analysis

Live Demo

Lessons Learnt

Firmware Attacks

Components

COM

Payload

CDHS

EPS

ADCS

Components

Payload

PLCOM

COM

CDHS

Bus

Components

Payload

PLCOM

  • Hack CySat 2022
  • How I hacked an ESA's experimental satellite
    • Maurice-Michel Didelot
  • Tomorrow
    • Matteo Calabrese
  • Hack CySat 2023

COM

CDHS

Bus

Components

  • Bypass COM Protection
    • Missing AC
    • Insecure Protocol
    • Outdated Crypto
    • Timing Side Channels
    • Leaked Keys
    • Timed Backdoor
    • ...

COM

CDHS

Bus

Components

  • Bypass COM Protection
    • [...]

COM

CDHS

  • Deploy Attacker Payload
    • Firmware Update
      • Signed Image
      • Slow Upload
      • Comples System

Bus

Components

  • Bypass COM Protection
    • [...]

COM

CDHS

Bus

  • Deploy Attacker Payload
    • Firmware Update
    • Dangerous TC
    • Vulnerbale TC
  • Hijack Bus Control Flow
  • Full Bus Privileges

 Objectives

1

2

3

4

Bypass COM Protection

Dangerous / Vulnerable TC

Hijack Bus Control Flow

Full Bus Privileges

Security Analysis

Awesome Sat

OPS-Sat

Peripherals

S-/X-Band, SDR, Optical Rx., Camera, ...

Launched

December 2019

Payload Plattform

ARM-Based Linux + FPGA

Operated by ESA

Open for Research

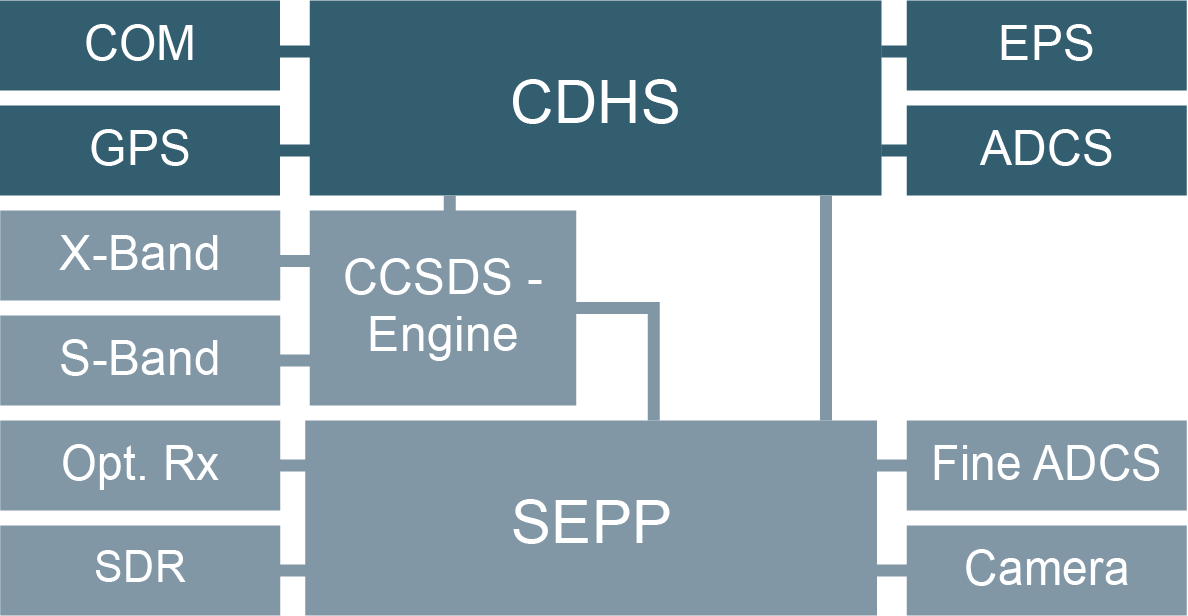

System Chart

  1. Bypass COM Protection
  2. Dangerous / Vulnerable TC
  • memcpy as TC
    • Config Changes
    • Quick/Hot Patching
    • Debugging
int sch_handler_set_raw_memory(scheduler_cmd_t* pCmd) {
  raw_mem_access_cmd_t* pAddr = pCmd−>pCmdArgs;
  char* pWriteData;

  if (pAddr) {
    if (g_sch_exec_mode != 1 ) {
      /* exception and return */
    }
    char* pWriteData = &pAddr−>start_of_data_buf;
    if (pAddr−>filesystem_target) {
      // [...]
    } else {
      memcpy(pAddr−>targetAddr,
             &pAddr−>start_of_data_buf,
             pAddr−>writeLength);
    }
  }
  // ...
}

System Chart

System Chart

Message Abstraction Layer (MAL)

S-Band

Space Packet Protocol (SPP)

PUBSUB_MonitorEvent

SUBMIT_SetPowerState

INVOKE_GetGPSData

...

PROGRESS_GetSummary

Custom Byte Parsing

ADCS Server

...

UHF

Cubesat Space Protocol (CSP)

Parameter DB

CSP => SPP

void task_adcs_servr() {
  char log_file_name [32];

  csp_listen(socket, 10);
  csp_bind(socket, port);

  do {
    do {
      conn = csp_accept(socket, 0xff);
    } while (do_wait_for_conn);

    packet = csp_read(conn, 10);
    if (packet) {
      packet_data = packet->data;
      switch(*packet_data) {
        // [...]
        case SET_LOGFILE: {
          packet_data = packet->data + 0xf;
          log_file_name[0] = '\0';
          strcat(log_file_name,packet_data);
          // ...
        }
      }
    }
  }
}

System Chart

ADCS Server

Cubesat Space Protocol (CSP)

  1. Bypass COM Protection
  2. Dangerous / Vulnerable TC
  3. Hijack Bus Control Flow
    • No OS-Defenses
      • ASLR
      • NX Stack
    • No SW-Defenses
      • Stack Cookies

System Chart

  1. Bypass COM Protection
  2. Dangerous / Vulnerable TC
  3. Hijack Bus Control Flow
  4. Full Bus Privileges
    • Privilege-free RTOS

System Chart

Demo Setup

Emulation Overview



QEMU





AVR32





OBSW





Simulation Agent





Sensors





UHF





TC Handlers



Telecommand

Telemtry

TCP

TCP

Flight Manuvers

Sensor Values

Live Demo

$> ./access-satellite.
[*] Uploading TC ...
[*] Deploying payload ...
[*] Payload written to flash ...
[*] Rebooting ...
[*] $$$

Lessons Learnt

Firmware Attacks on Satellite are a thing

Just TC Execution is not Enough

Missing State-of-the-Art Defense

90s-style Buffer Overflows in Space Systems

Thanks!

  • Firmware Attacks on Satellite
    • External Attacker → COM → CDHS → $$$
  • Satellite Exploitation Objectives
  • Vulnerable & Dangerous TCs
  • Missing OS & SW-Defenses
